Sliding Window With Screen (Sliding Door), Assembly Overview

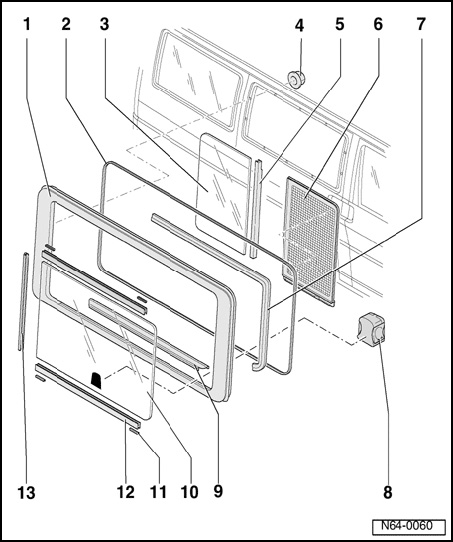

Sliding Window With Screen (Sliding Door), Assembly Overview (From 06.94)







CAUTION: Part numbers are for reference only. Always check with your Parts Department for latest information.

NOTE: To remove the sliding window (sliding door) first remove the sliding door molded trim.

1 - Frame
- With studs

2 - Gasket
- Glued to frame

3 - Fixed window
- If broken, replace complete sliding window unit

4 - Hex nut
- 1.5 Nm (13 in.lb)
- Cap nut in vehicles without molded trim

5 - Divider post
- Glued with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent
- Replacing

6 - Screen
- Clipped on from inside

7 - Sealing frame
- If necessary, cut to fit
- Glued with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent
- Replacing

8 - Handle
- Glued on

9 - Stop rail
- If necessary, cut to fit
- Glued with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent
- Replacing

10 - Movable window
- Replacing

11 - Guide piece
- For left and right
- Replace in pairs

12 - Guide profile
- If necessary, cut to fit

13 - Clamping profile
