Torque Converter, Draining

Torque converter, draining

Special tools and equipment





^ V.A.G 1358 A Oil extractor
If the torque converter has become fouled by abrasion or when performing a major overhaul of the transmission, drain the torque converter as follows:

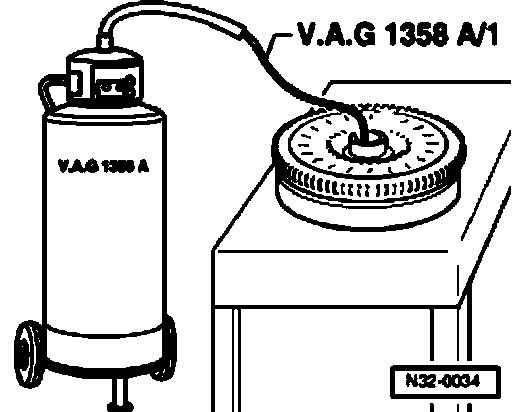

^ Extract ATF from torque converter using VAG 1358 A and probe VAG 1358 A/1.
