Scan Tool VAS 5051, Connecting

Vehicle diagnostic, testing and information system VAS 5051, connecting

Special tools, workshop equipment, testers, measuring instruments and auxiliary items required

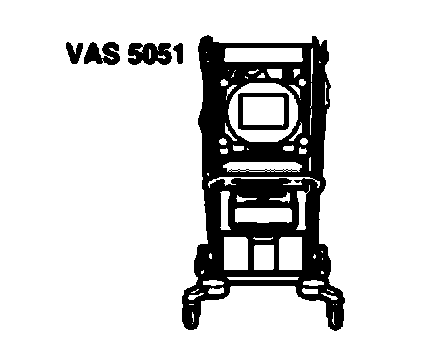

^ VAS 5051 Vehicle diagnostic, testing and information system
^ VAS 5051/1 or VAS 5051/3 diagnostic cable
^ VAS 5051/2 diagnostic adapter

Additional information
^ Volkswagen Self-study program No.202.

Vehicles from 09.98

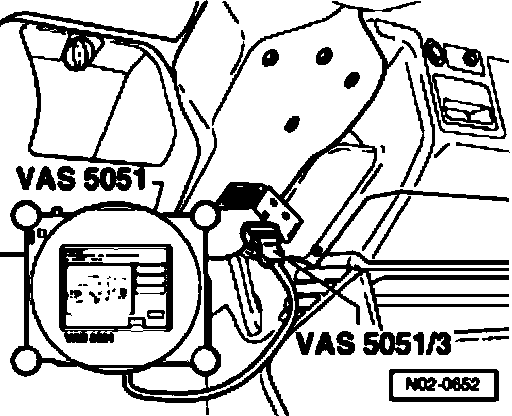

^ Open cover for diagnostic connection in lower steering column.





^ With ignition switched off, connect tester VAS 5051 to diagnostic connection using diagnostic cable 5051/1 or 5051/3.





^ Switch on tester-arrow-.

Now the tester requires approximately 3 minutes to run up.
^ Switch on ignition.
^ Select the zone "Vehicle self-diagnosis" on touch screen.

The display will now guide you further.
