Scan Tool VAG 1551, Connecting

Scan tool V.A.G 1551, connecting and selecting functions

Additional information
^ Electrical Wiring Diagrams, Troubleshooting & Component Locations
^ Parts catalog

Vehicles from 09.98
^ Open cover for diagnostic connection in lower steering column.





^ With ignition switched off, connect scan tool V.A.G 1551 with diagnostic cable V.A.G 1551/3.

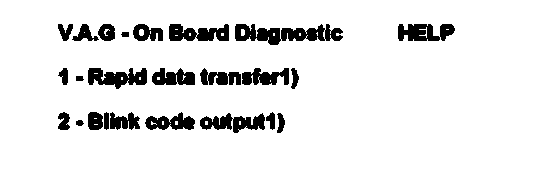

Indicated on display:
1) appears alternately
^ Additional operating instructions can be called up by pressing the HELP key of V.A.G 1551.
^ The -> key is used for advancing within the program sequence.
^ An automatic check (keys 00) can be carried out in the operating mode 1 "Rapid data transfer". Then all vehicle control modules will be Checked automatically.

=> Scan tool V.A.G 1551 operating instructions.
