Transmission With Selector Elements

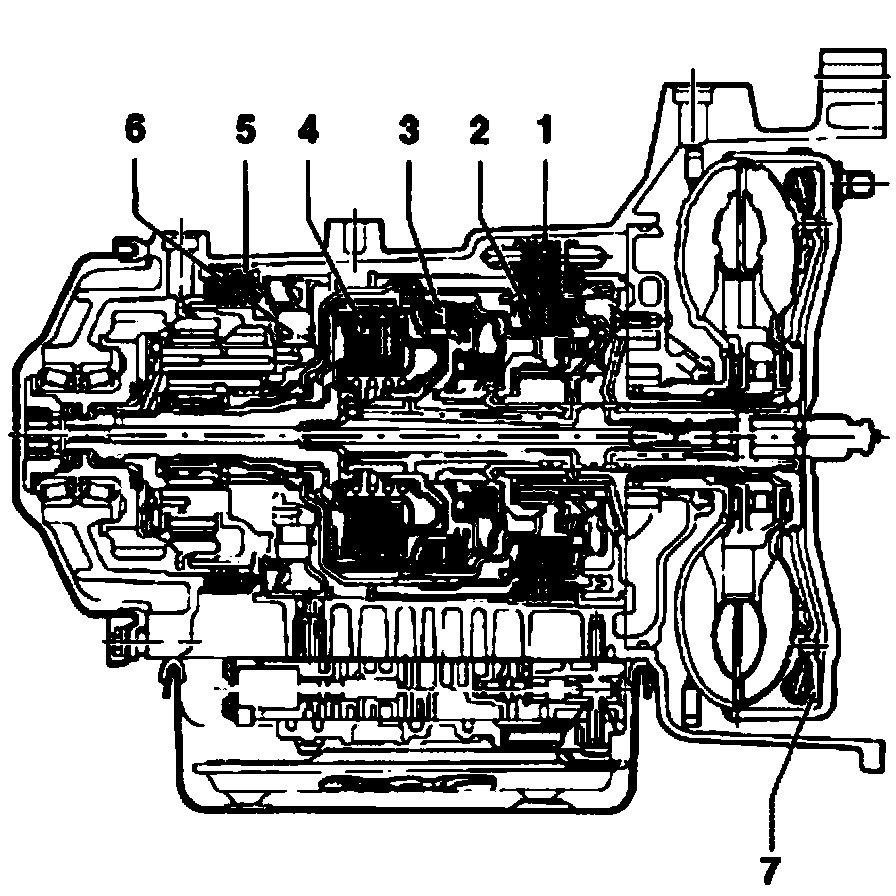

Transmission with selector elements





Position of selector elements
1 = 2nd and 4th gear brake -B2-
2 = Reverse gear clutch -K2-
3 = 1st to 3rd gear clutch -K1-
4 = 3rd and 4th gear clutch -K3-
5 = Reverse gear brake -B1-
6 = Free wheel clutch
7 = Lock-up clutch integrated in torque converter -LC-

Before starting repairs to the transmission, first carry out the On Board Diagnostic (OBD)

Note:

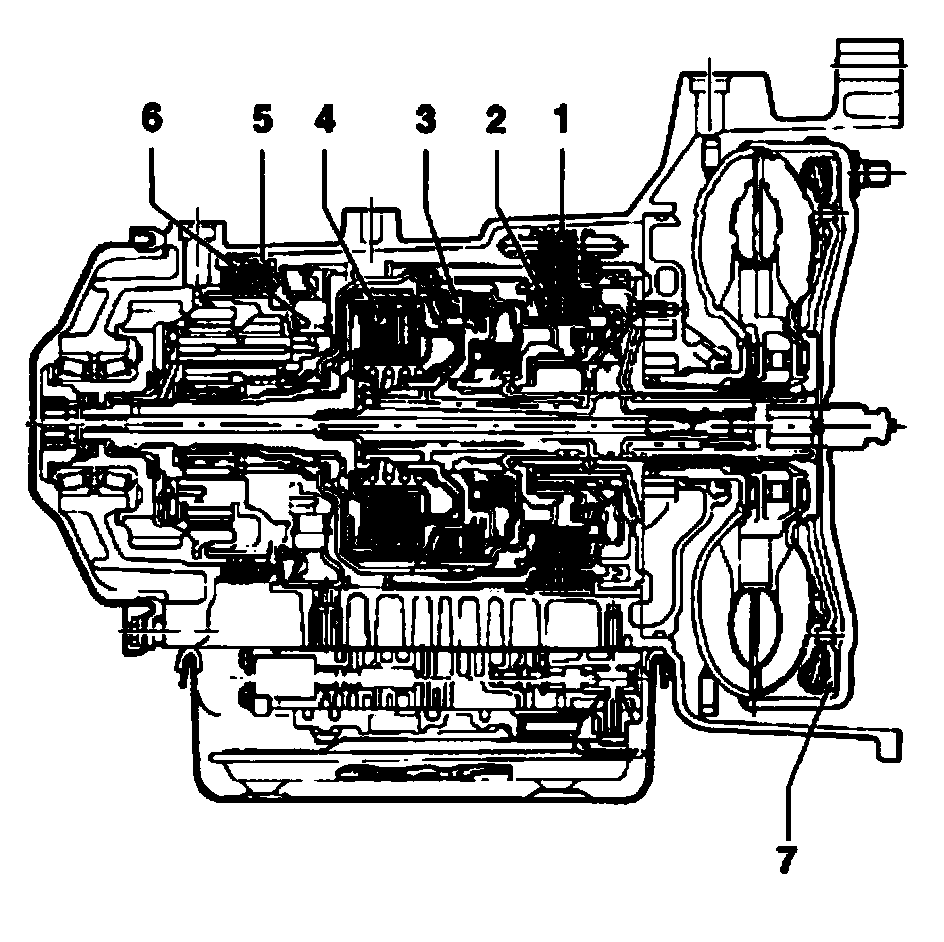

The illustration is from automatic transmission 01M. The application of automatic transmission 01P selector elements is identical.

Position of selector elements

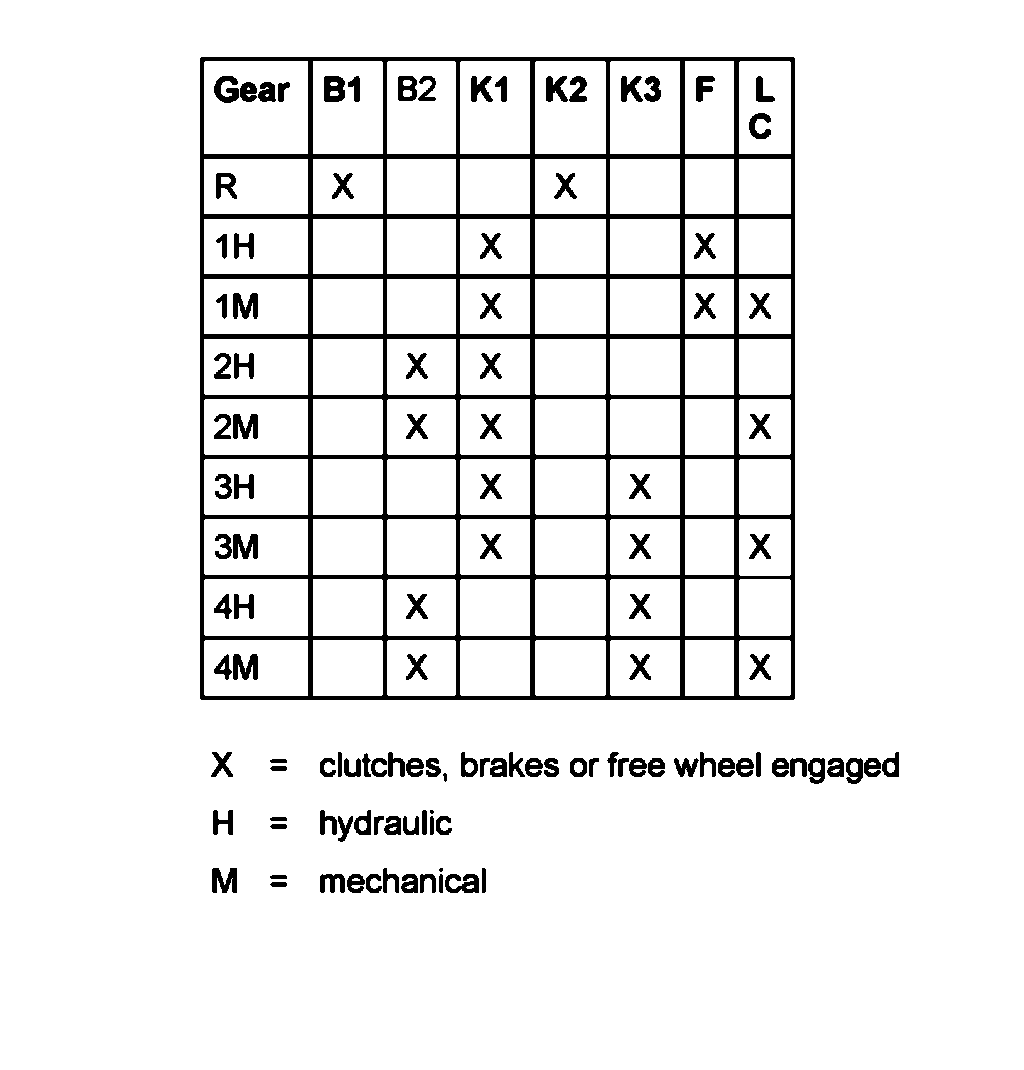

The following table shows which selector elements are operated in the individual gears to help you deal with complaints regarding poor acceleration and speed performance or generally with drive train malfunctions. The table makes it possible to determine which selector elements are not operating properly.

All gears will be shifted hydraulically.





All forward gears are driven mechanically at a predetermined load and speed via the torque converter lock-up clutch.
