Selector Mechanism, Disassembling and Assembling

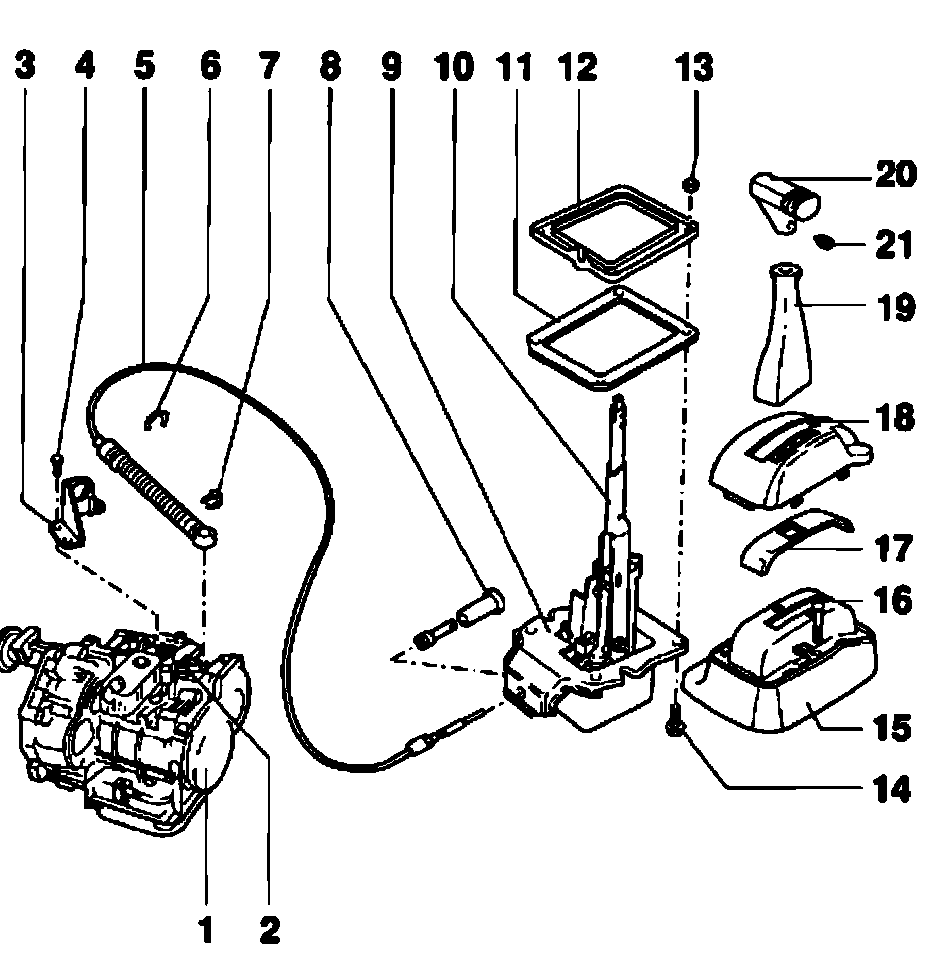

Selector mechanism, disassembling and assembling





1. Transmission
2. Lever
^ For selector shaft
3. Support bracket
^ For selector lever cable
4. Bolt, 10 Nm
^ Qty. 3
5. Selector lever cable with guide tube
^ Do not bend or kink, lightly grease cable eyelet and cable ends before installing
^ Boots and protective cover must be installed correctly otherwise moisture can enter the selector lever cable
^ Check boots and protective cover are undamaged and seated correctly replace if necessary
^ Check guide tube for tight fit
^ Tighten selector lever cable on anchorage/selector lever housing to prescribed torque: - bolt, 20 Nm-, ensuring recessed side of selector lever cable is toward adjustment screw
^ Secure to support bracket with locking washer
^ Secure to lever/selector shaft with locking washer
6. Locking washer
^ For selector lever cable
^ Always replace
7. Locking washer
^ For selector lever cable
8. Protective sleeve
^ Insert into selector lever housing before attaching selector lever cable
9. Selector lever housing
^ With installed selector lever
^ Need not be removed to replace selector lever cable or individual parts of selector mechanism
10. Selector lever
^ Removing and installing - Refer to: Shift Lever, A/T / Selector Lever, Removing and Installing.
Selector Lever, Removing and Installing

^ Disassembling and assembling - Refer to: Shift Lever, A/T / Selector Lever, Disassembling and Assembling.
Selector Lever, Disassembling and Assembling
11. Gasket
^ Glue to selector lever housing
12. Frame
^ For securing the console and the ignition key removal lock cable
13. Nut, 12 Nm
^ Qty. 4
14. Bolt, 12 Nm
^ Qty. 4
15. Console
16. Bolt, 2 Nm
17. Cover strip
18. Cover
^ With selector indicator
19. Selector lever trim
20. Selector lever handle Lightly grease push rod for installing Secure using set or grub screw depending on design
21. Set screw, 1.5 Nm
^ Insert grub screw with D 000 600
