Identification

Transmission, removing and installing

Removing and installing transmission on vehicles from 01.96 with short front end - Refer to:
Vehicles With Short Front End

Removing and installing transmission on vehicles from 01.96 with long front end - Refer to:
Vehicles With Long Front End

All Eurovan from 01.96
On Eurovan from 01.96, the front end and also the assembly mounts have been modified.

The front end can be either long or short front end version. Refer to differences noted in this article.

The transmission mounts on these vehicles have also been modified (pendulum support). From 01.96, drive to the right-hand drive axle is via an exposed flange shaft.

Support device 3250 can no longer be used.

The torsion bars are relieved when vehicle is raised.

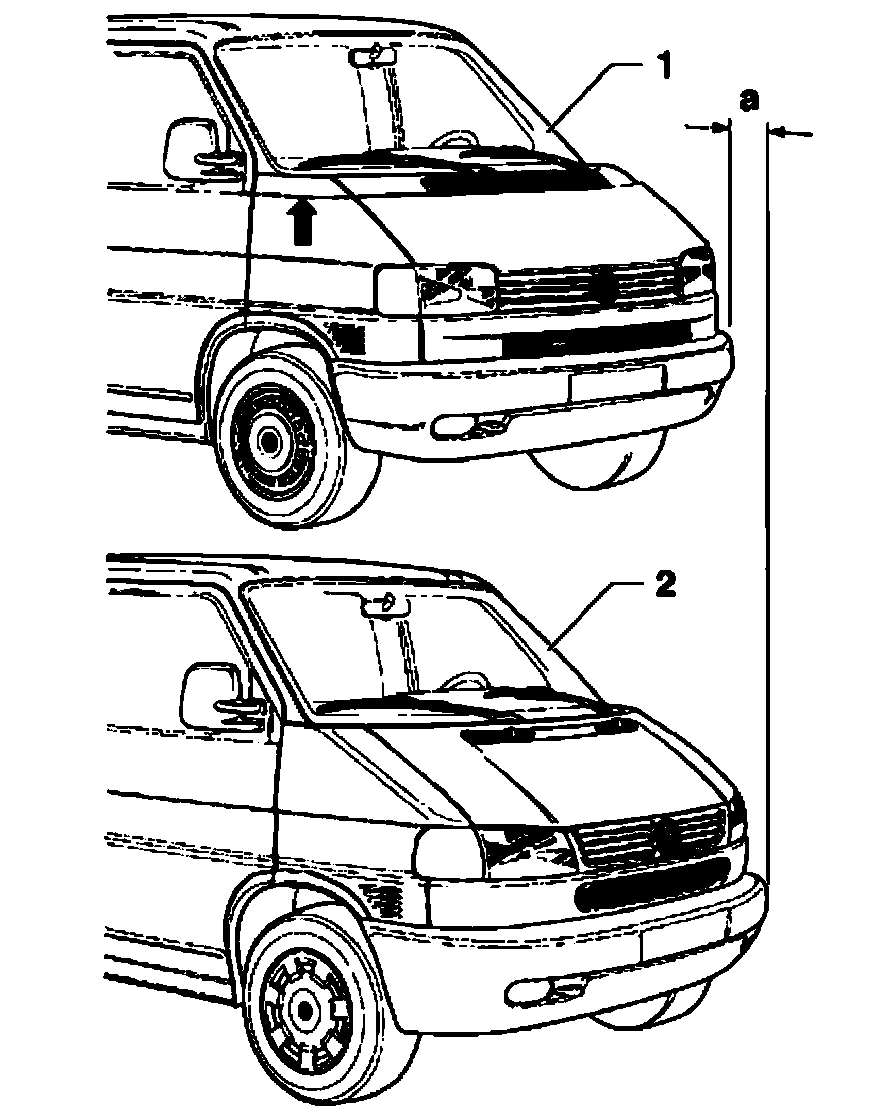

Differences between EuroVan with long and short front end from 01.96





1. EuroVan with short front end
^ Character line (arrow) on upper wing.
2. EuroVan with long front end
^ This EuroVan is 90 mm (dimension -a-) longer than a short front end vehicle.
^ No character line on upper wing.
