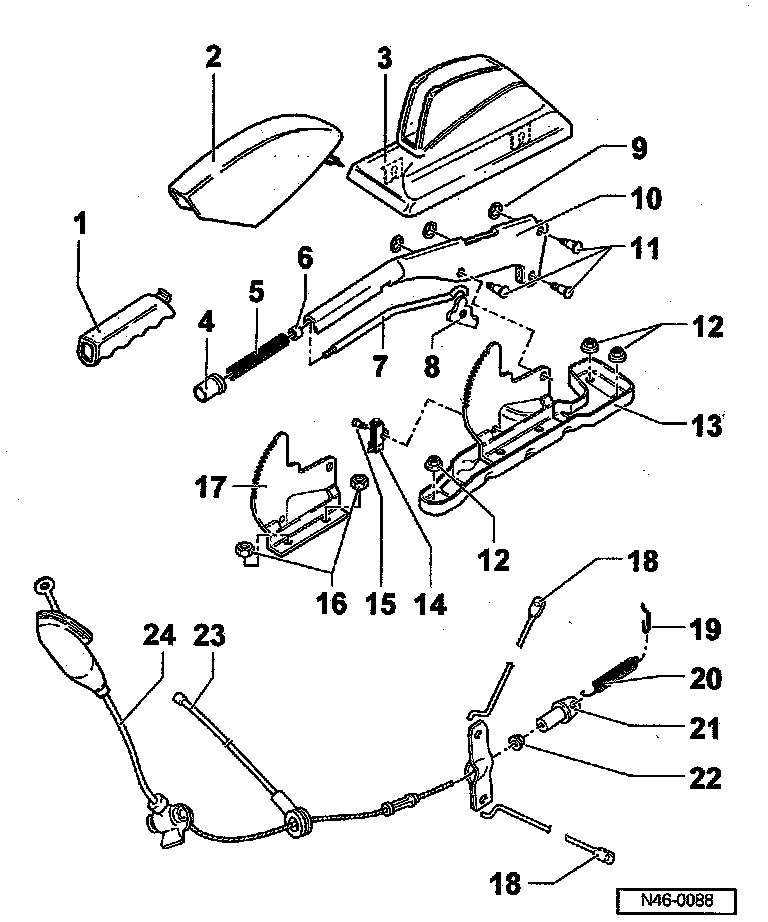

Parking Brake Lever







Legend

12 Self-locking hex nut
- Tighten to: 25 Nm (18 ft lb)
- Always replace
16 Self-locking hex nut
- Tighten to: 25 Nm (18 ft lb)
- Always replace
