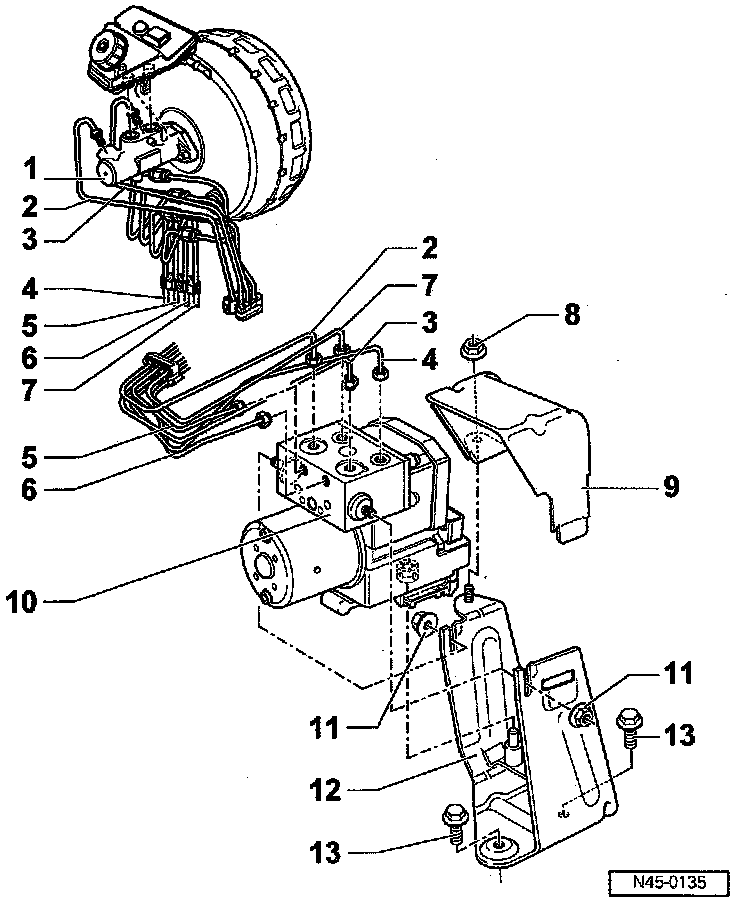

Hydraulic Control Assembly - Antilock Brakes

Tightening Specifications





Legend
8 Hex nut
- Tighten to: 8 Nm (70 inch lb)
11 Hex nut
- Tighten to: 12 Nm (9 ft lb)
13 Bolt
- Tighten to: 8 Nm (70 inch lb)
