Positioning Element, Removing

Positioning Element, Removing

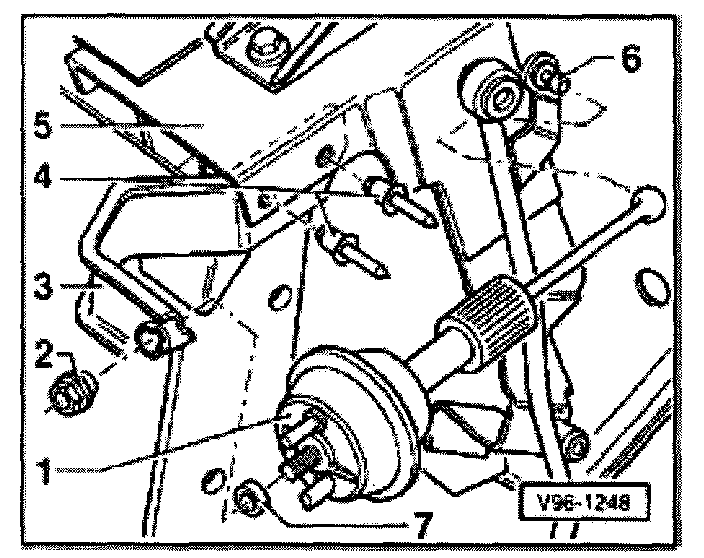

1 - Positioning element
2 - Plastic nut
3 - Positioning element bracket
4 - Pop-rivet
5 - Pedal cluster
6 - Ball pin, on accelerator pedal
7 - Spacer - Only vehicles with automatic transmission
- Pull vacuum hose off positioning element -1-.
- Unclip positioning element pull rod from ball pin -6-.
- Remove plastic nut -2- and positioning element -1-.
