Radiator Hose: Diagrams

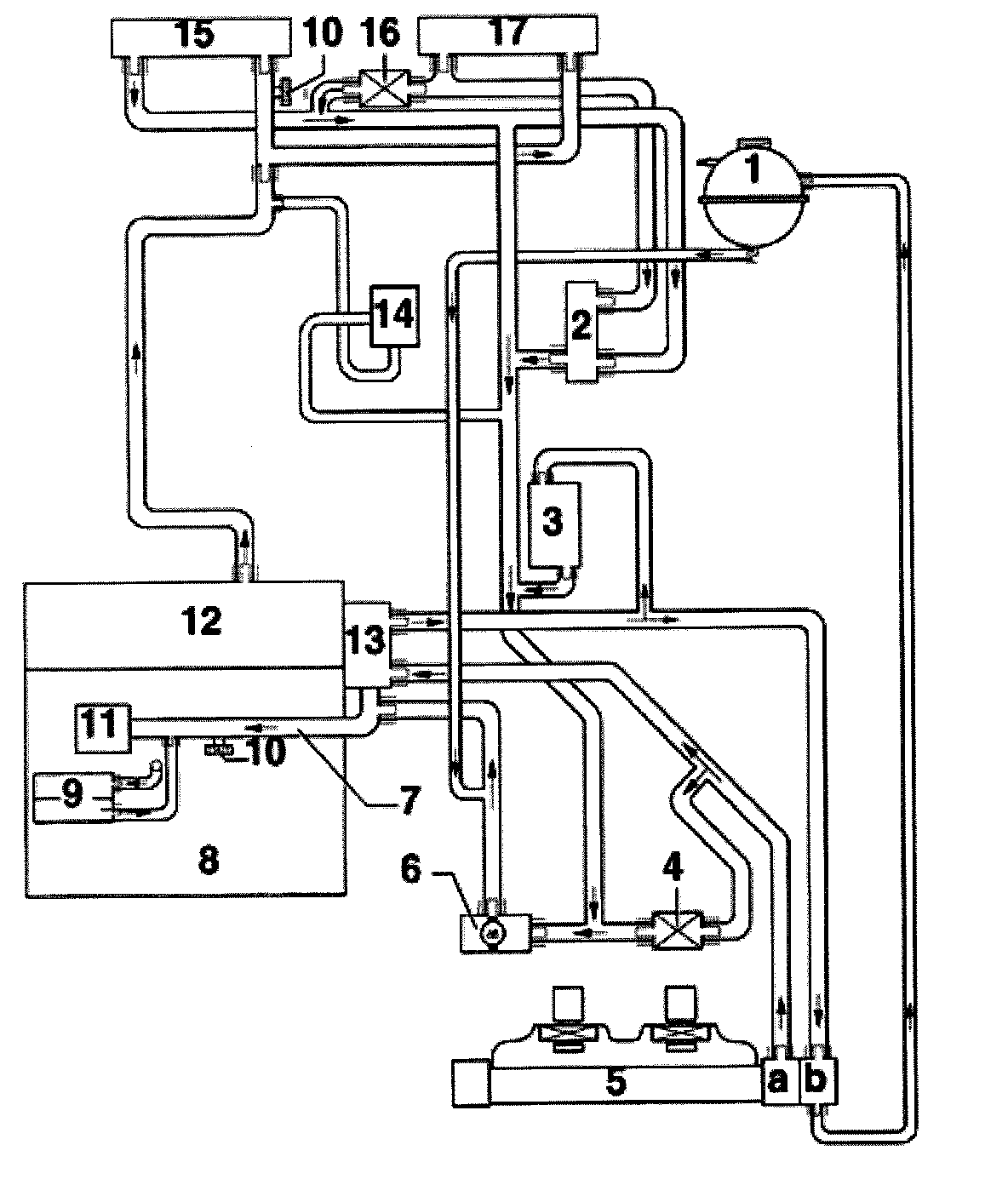

Coolant hose connection diagram






1. Expansion tank
2. Regulation valve
- For vehicles with M-equipment
3. ATF cooler
- Only for vehicles with automatic transmission
4. vacuum valve
5. Radiator
- a= bottom
- b= top
6. After run coolant pump -V51
7. Coolant pipe
8. Cylinder block
9. Oil cooler
10. Drain plug, 10 Nm
11. Coolant pump
12. Cylinder head
13. Thermostat - housing
14. Connecting - piece with throttle valve control module
15. Heater core
16. Solenoid valve
- For vehicles with M-equipment
17. Auxiliary heat exchanger
- For vehicles with M-equipment
