Tail Lamp: Service and Repair

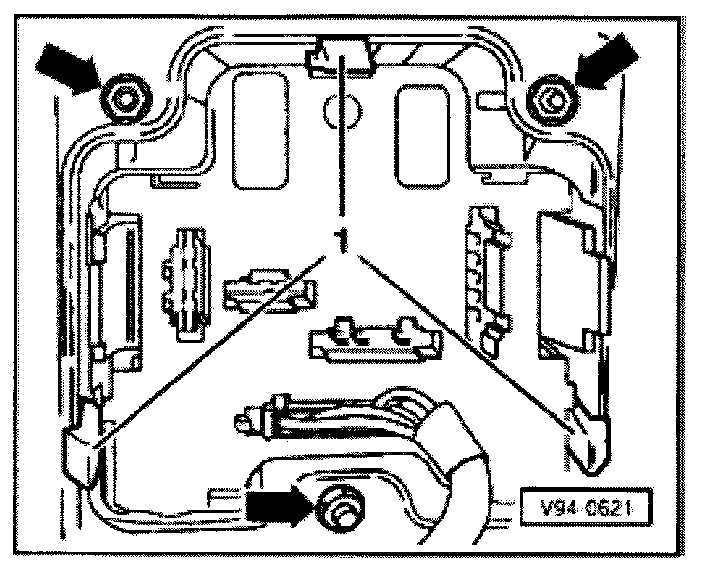

Rear Light Housing, Removing And Installing







- Disconnect electrical connection from bulb holder.
- Remove hex nuts -arrows-.
- Release lugs -1- and remove housing by turning.
- Install in reverse order of removal
