Headlamp: Locations

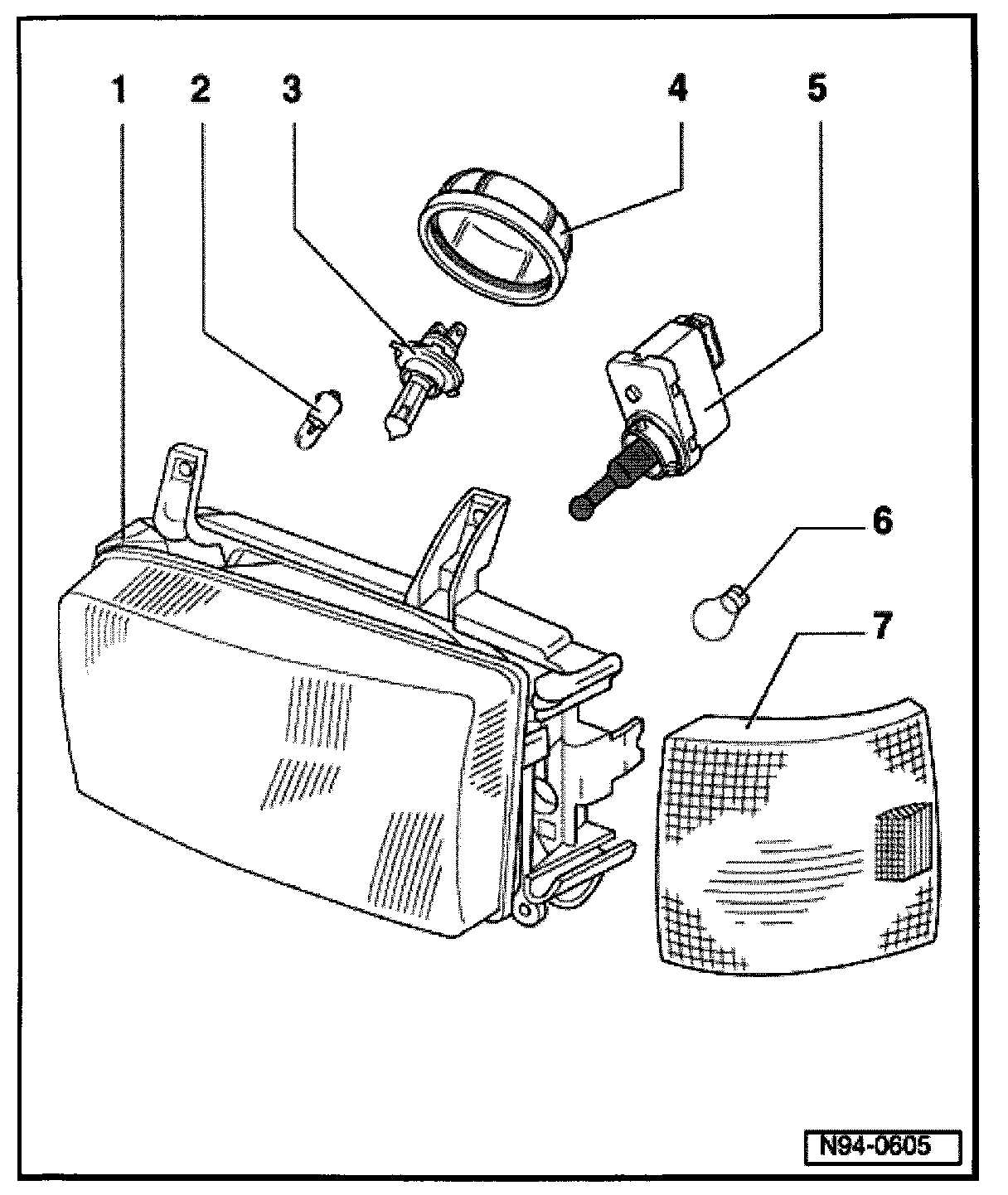

Headlights, Assembly


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio.


NOTE: After performing any repairs or service that could affect headlight aim, check/adjust aim.







1 - Headlight housing
2 - Parking light bulb (in headlight)
- Where applicable
- Bulb 12V, 4 W
3 - Double filament bulb for low/high beam
- Halogen bulb H4 12V, 60W/55W
4 - Cap
5 - Headlight beam adjusting motor
- Where applicable
6 - Front turn - signal/parking/side marker light bulb
- Bulb 12V, 5W/21W
7 - Front turn signal/side marker light housing
