Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulb, Replacing


CAUTION!
Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.

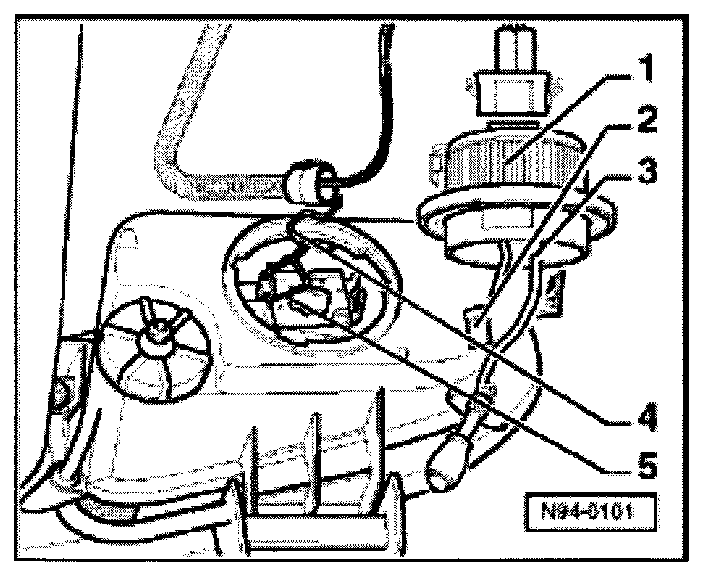

- Disconnect electrical connection form protective cap.
- Remove protective cap -1- from fog light housing.
- Disconnect ground -2- and electrical connector -3- in protective cap housing.
- Release spring wire clip -4- and swing out.
- Pull bulb out of housing.
- Insert bulb (H3,12V, 55W) 50 recess in bulb holder aligns with housing guide lug -5-.
- Remaining installation in reverse order of removal.
- Check fog light (bulb) function.
