Fog/Driving Lamp: Adjustments

Fog Lights, Adjusting

Special tools, testers and auxiliary items needed

- VAS 5107 Optical headlight aimer


NOTE:
- Adjust fog lights using detailed aiming procedure and specifications

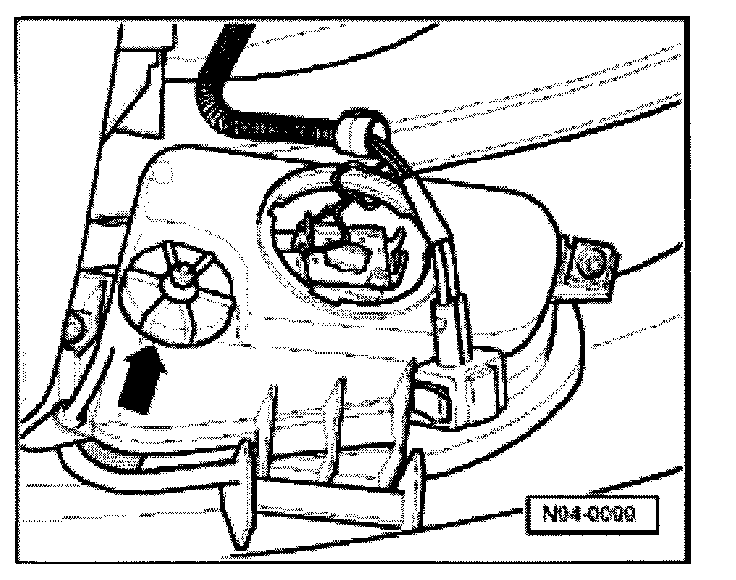

- Adjust beam height by turning adjustment wheel -arrow-.


NOTE:
- Adjustment wheel only for height adjustment -arrow-
- No lateral adjustment is possible.
