Odometer: Service and Repair

Adaptation (function 10)

Use this function to initiate and store the following changes:
- Adaptation of odometer reading when replacing/exchanging instrument cluster
- Adaptation of fuel gauge reading
- Adaptation of MFI fuel consumption indicator (where applicable)

Individual functions are called up using the appropriate channel number from adaptation table.

Adaptation table:

Adaptation channel Adaptation functions
03 Fuel consumption indicator adaptation (where applicable)
09 Odometer adaptation
16 Distance impulse number (K number):Read only.Cannot be changed
30 Fuel gauge, checking (adaptation)


NOTE: After changing an adaption value or ending an adaption channel the function "10- Adaption" must be performed to select another adaption channel!


Odometer, adaptation


NOTE:
- The total distance travelled can be read from the malfunctioning instrument cluster, or determined by the vehicle service history.
- The total distance travelled display of new instrument cluster must be more than 100 km (62 mi) before adaptation.
- The total distance travelled to be transferred to the new instrument cluster must not exceed 100 km (62 mi).
- Adapting the total distance travelled is only possible once and only in a positive (upwards) direction.
- Adaptation can be interrupted using the "C" button of the VAG 1551 scan tool.
- Correcting a false entry which has been confirmed is not possible. The instrument cluster must be exchanged for a new one.
- For instrument clusters with mile indicators, adaptation must be performed in kilometers. Mileage values must be converted to kilometers (1 mile is approx. 1.609 kilometers). The control module for instrument cluster calculates the mileage in miles from the value entered in kilometers.


Example:
The malfunctioning instrument cluster has an odometer display of 89627 km. The odometer value can be transferred to the new instrument cluster as follows:
- Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch ignition on and enter address word 17 for "instrument cluster".

After control module identification is displayed:

- Press -> button.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press button 1- twice to select function 11 "Login procedure".

Indicated on display:


Rapid data transfer Q
11 - Login - procedure


- Press -Q- button to confirm input.

Indicated on display:


Login procedure
Enter code numbers XXXXX


- Enter code number 13861.

Indicated on display:


Login procedure Q
Enter code number 13861


- Press -Q- button to confirm input.

If displayed:


Function is unknown or can ->
not be performed at the moment!


- Press -> button.
- Repeat login procedure by entering the correct code number.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -1- and -0- to select function 10 "Adaptation".

Indicated on display:


Rapid data transfer Q
10 - Adaptation


- Press -Q- button to confirm input.

Indicated on display:


Adaptation
Enter channel number XX


- Press buttons -0- and -9-.
- Press -Q- button to confirm input.

Indicated on display:


Channel 9 adaptation 0 ->
<-1 3->


- Press -> button to continue program sequence.

Indicated on display:


Channel 9 adaptation 0
Enter adaptation value XXXXX


- Input adaptation value using VAG 1551/1552 button pad.

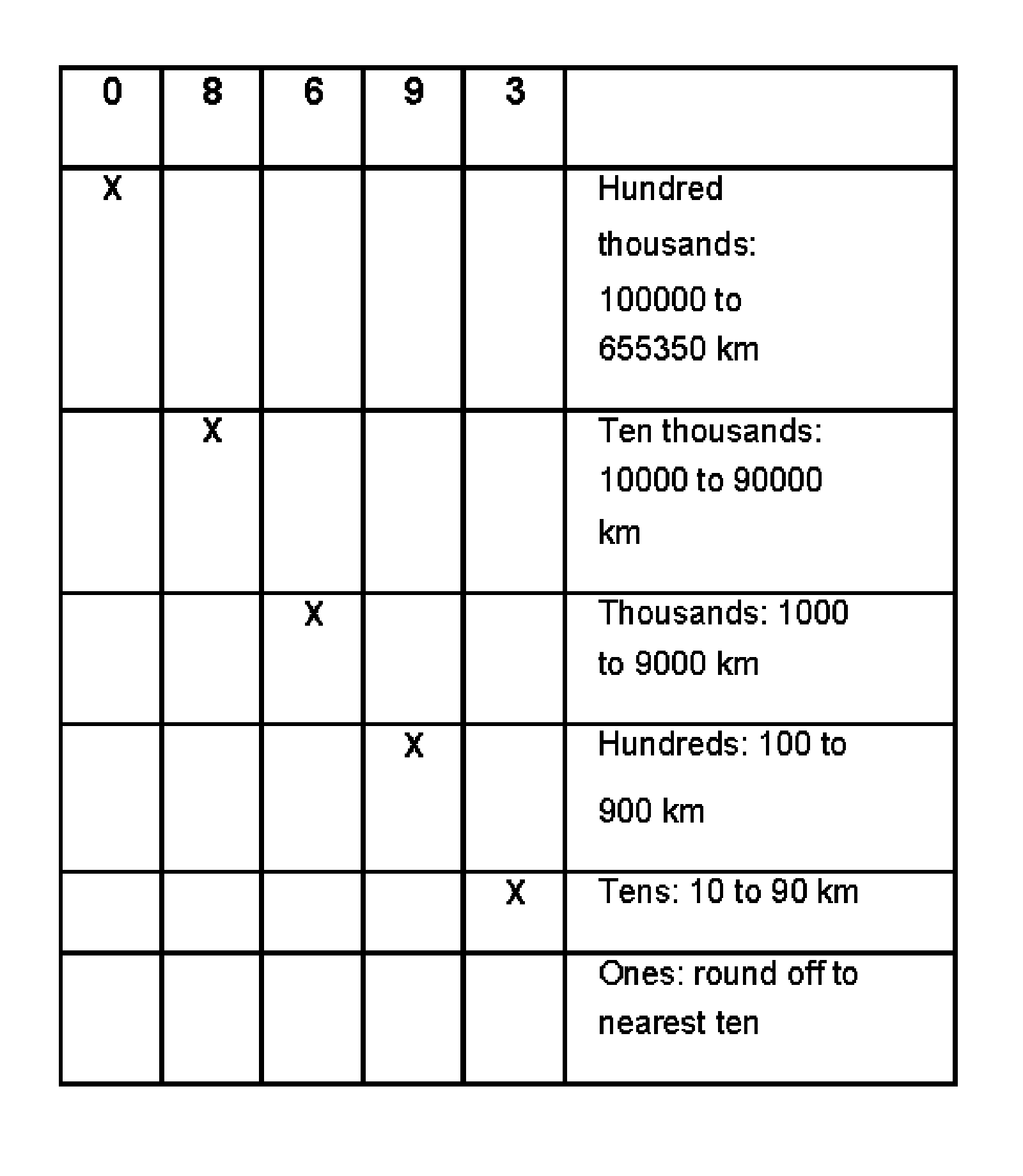

The last position of the kilometer reading must be rounded off to the nearest 10 km. The km reading of 89627 results in an adaptation value of:







Indicated on display:


Channel 9 adaptation 0 Q
Enter adaptation value 08983


- Press -Q- button to confirm input.

Indicated on display:


Channel 9 adaptation 8963 Q
<-1 3->


The km reading entered is now indicated on the instrument cluster display. If the km reading indicated is not OK or was entered incorrectly:

- Press -C- button and repeat input of correct adaptation value

If the km reading indicated is OK:
- Press -Q- button to confirm input.

Indicated on display:


Channel 9 adaptation 8963 Q
Store modified value?


- Press -Q- button to confirm input.

Indicated on display:


Channel 9 adaptation 8963 ->
Modified value has been stored


- End adaptation of the odometer by pressing -> button.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -6- to select function 06 "End Output",

Indicated on display:


Rapid data transfer Q
06 - End Output


- Press -Q- button to confirm input.

Indicated on display:


Rapid data transfer HELP
Enter address word XX


- Switch off ignition.
- Disconnect Data Link Connector (DLC)

Distance impulse number (K number), reading


NOTE:
- The distance impulse number is a constant value that is required for calculating the speed indication and the distance traveled.
- The distance impulse number (K number) cannot be changed via the "adaptation" function!
- For instrument clusters with mile indicators, the distance impulse number is shown in kilometers. The trip impulse number for mile values can be calculated as follows: Trip impulse number for kilometer values x 1.609 See trip impulse number for mile values.
- Press the -C- button on the VAG 1551 to abort the "Read distance impulse number" function.


- Connect VAG 1551 Scan Tool (ST), select operating mode 1 "Rapid data transfer", switch ignition on and enter address word 17 for "instrument cluster".

After control module identification is displayed:

- Press -> button.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -1- and -0- to select function 10 "Adaptation".

Indicated on display:


Rapid data transfer Q
10 - Adaptation


- Press -Q- button to confirm input.

Indicated on display:


Adaptation
Enter channel number XX


- Press buttons -1- and -6-.
- Press -Q- button to confirm input.

Indicated on display:


Channel 16 adaptation 3355 ->
<-1 3->


- Distance impulse number must match engine/transmission combination of vehicle.
- Abort the "Reading out trip impulse number" function using the -C- button.

Indicated on display:


Adaptation
Enter channel number XX


- Press -C- button.

Indicated on display:


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -6- to select function 06 "End Output".

Indicated on display:


Rapid data transfer Q
06 - End Output


- Press -Q- button to confirm input.

Indicated on display:


Rapid data transfer HELP
Enter address word XX


- Switch off ignition.
- Disconnect Data Link Connector (DLC).
