Vacuum Valve Rail -N53- Removing and Installing

Digital Climate Control (Climatronic)

Vacuum Valve Rail -N53- Removing and Installing

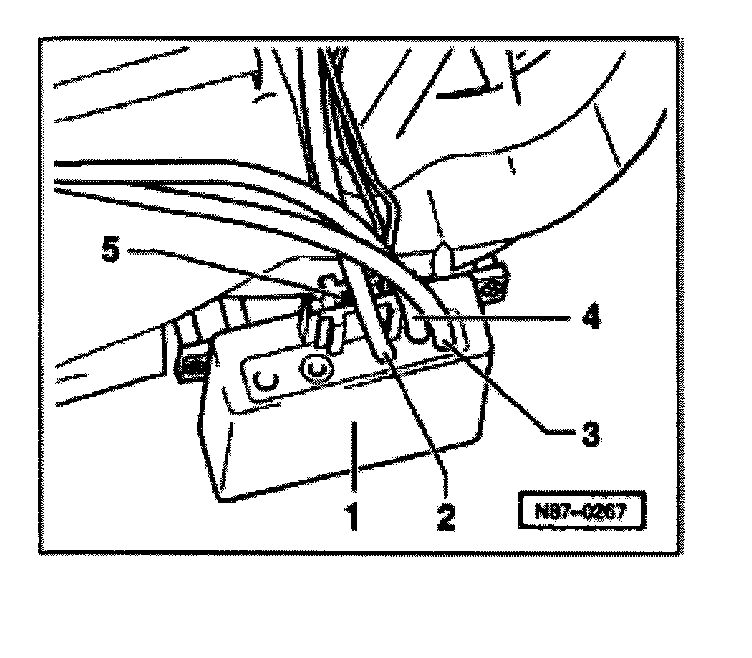

1 Vacuum Valve Rail

2 Vacuum Hose Green

3 Vacuum Hose Yellow

4 Vacuum Hose Black

5 Connector

Removing

- Remove lower trim on passengers side

- Pull off vacuum hoses and electrical connections

- Remove mounting screws

Installing

- Install in reverse order noting the following:

- Vacuum hoses connected correctly (according to color coding)
