Heating and Ventilation System Servicing (Rear)

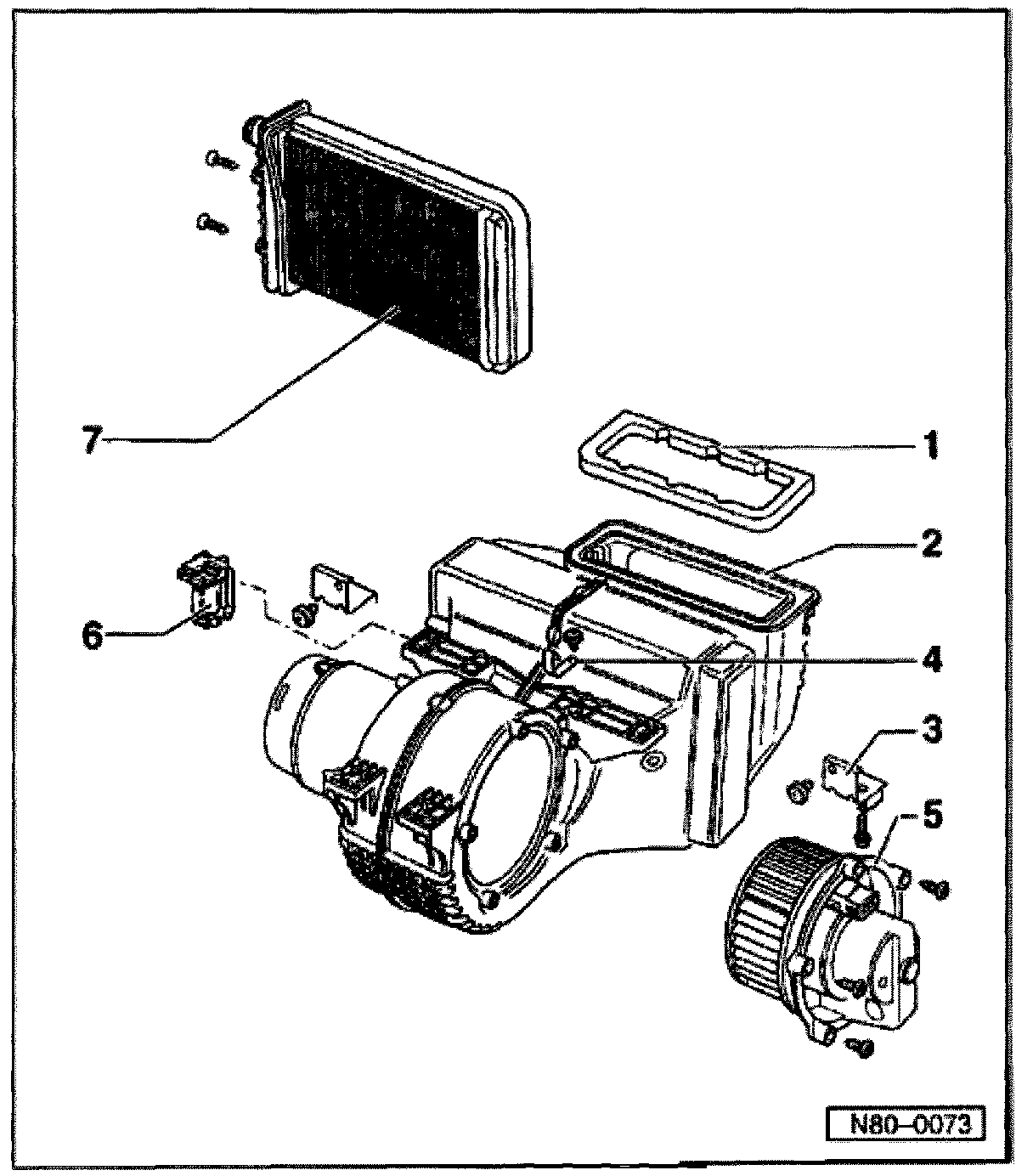

Rear Heater Air Distribution Housing, Assembly







1 - Gasket
2 - Air distribution housing
3 - Bracket
4 - Clip
- Snaps into position on cross member
5 - Rear warm air fan -V47-
- Note installation position
6 - Warm air blower series resistor -N72-
7 - Heater core
- Install seals around entire circumference of heater core
