Air Distribution Housing, Removing Rear Heater Climatronic

Digital Climate Control (Climatronic)

Rear Heater

Air distribution housing, removing

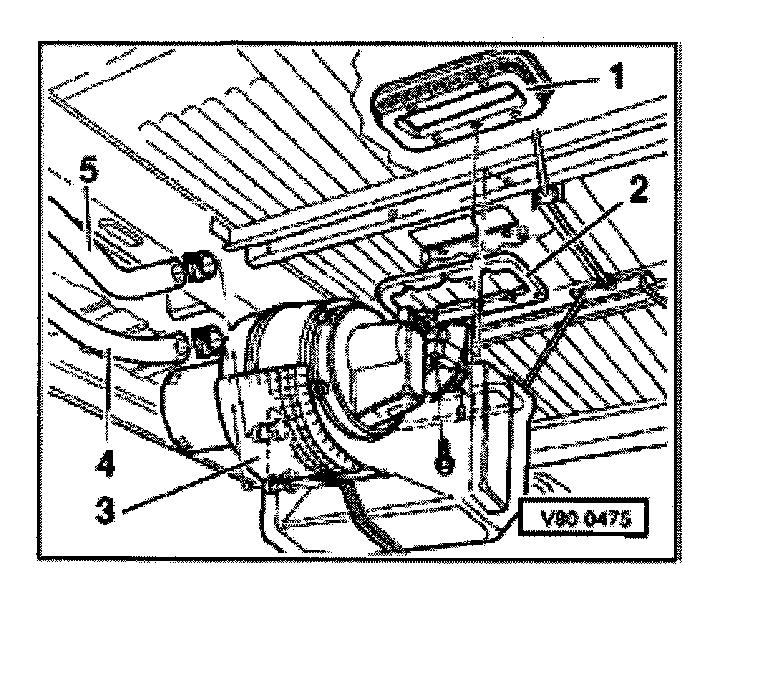

1 - Cover plate, in passenger compartment
2 - Gasket
3 - Rear heater air distribution housing
4 - Coolant supply hose
5 - Coolant return hose

Removing

WARNING!

Cooling system is pressurized when engine is warm. Before performing repairs, wear gloves, goggles and other appropriate protection while slowly and carefully releasing system pressure.

- Disconnect electrical connectors.
- Clamp coolant hoses as close as possible to heater core.
- Loosen hose clamps and remove coolant hoses. Plug heater core outlet/inlet.
- Remove vent.
- Remove cover plate.
- Remove bolts.
