Evaporator Temperature Switch, Remove/Install Man Heating & A/C

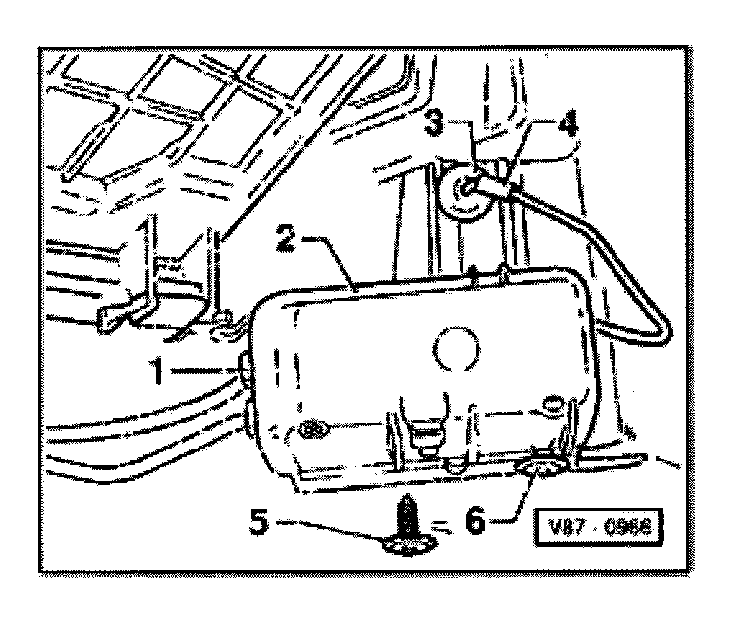

Evaporator Temperature Switch -E33-, Removing And Installing Manual Heating & A/C






1 - Connector
2 - Temperature switch with housing
3 - Grommet
4 - Sensor tube with insertion depth marking at 330 mm (13 in)
5 - Screw for evaporator housing cover
6 - Screw
