Digital Climate Control (Climatronic)

Climatronic Components In Engine Compartment, Servicing


CAUTION! Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual.

NOTE: System components identified with an * must only be serviced or replaced after discharging refrigerant system. Use Kent Moore ACR4 or equivalent.

Evaporator drain pipe, installing






NOTE:
- Water drain hose must be pushed into distributor box onto stop.
- Water may leak into passenger compartment if hose is not located on the drain valve as shown.
- Drain valve must not be blocked.

- Remove footwell vent console.

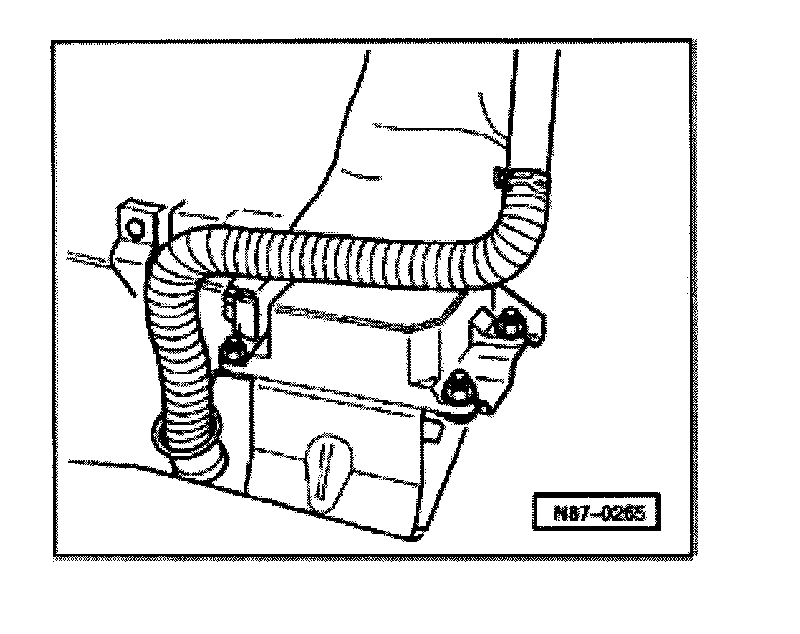

Install hose so that drain valve grommet seals tightly around hose.
