Ribbed-Belt Pulley, Removing

Ribbed-belt pulley, removing






- Remove circlip, key 3.
- Use locally available two-arm puller with 100 mm span depth (E.g.: Kukko 20-10 or equivalent).

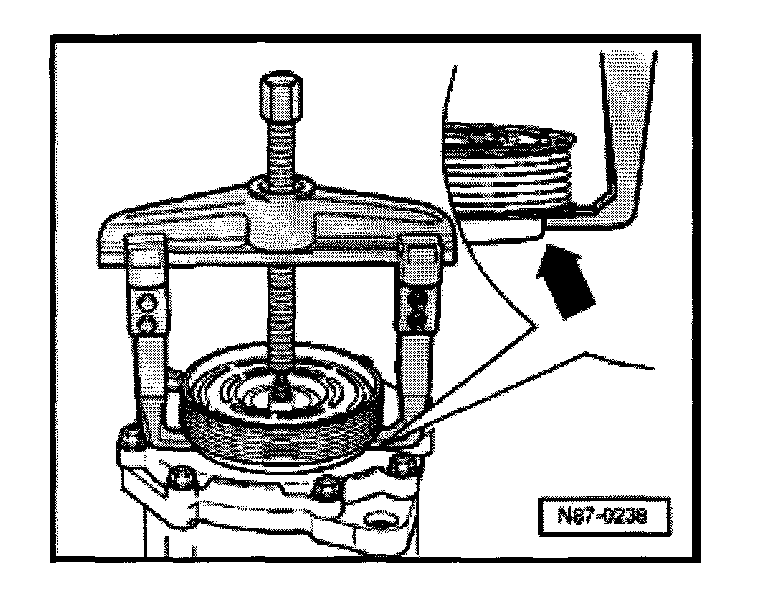

- Place puller arm under pulley as illustrated -arrow-.

CAUTION!
Place puller arms under pulley only far enough so as to not damage clutch coil upon removal
