Control Housing, Disassembling and Assembling

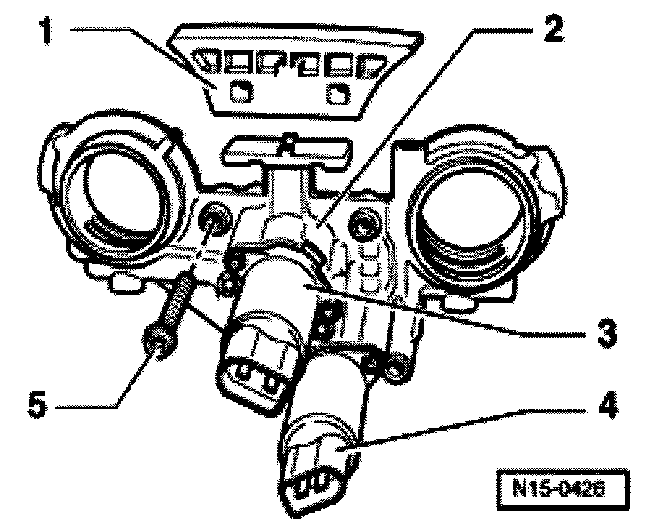

Control housing, disassembling and assembling






1. Glide track clipped in at control housing
2. Control housing
3. Valve -1- for camshaft adjustment - N205- on intake side
4. Valve -2- for camshaft adjustment - N208- on exhaust side
5. Bolt: Tighten to 8 Nm
