Oil Spray Jet: Service and Repair

Lubrication System Components, Removing And Installing

Oil Injector Jet, Removing And Installing






Special tools and equipment

- 4 mm drift

Note: Oil injector jets are installed in crankshaft bearings 2 to 7.

- Crankshaft removed

Removing
- Press out oil injector jet using a 4 mm - drift in direction of engine bearing.

Installing

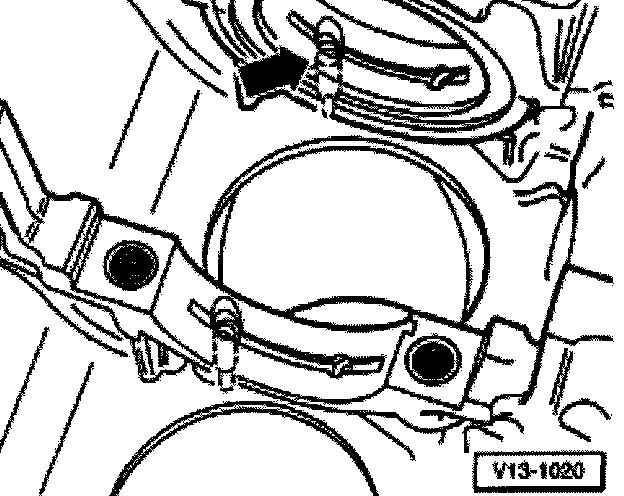

- To install, press in oil injector jet by hand using a 6 mm - drift (arrow).
