Checking Piston Ring End Gap
Pistons and connecting rods, disassembling and assembling
Checking piston ring end gap
Special tools and equipment
- Feeler gauge
Test sequence

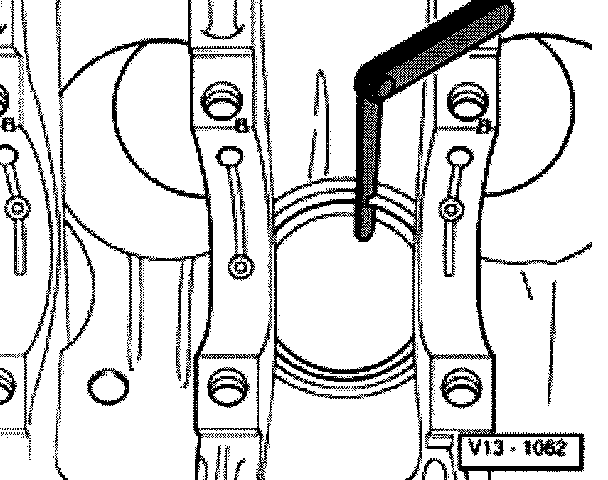

- Insert ring at a right angle to cylinder wall from above to lower cylinder opening approximately 15 mm cylinder edge. When inserting, use pistons without rings

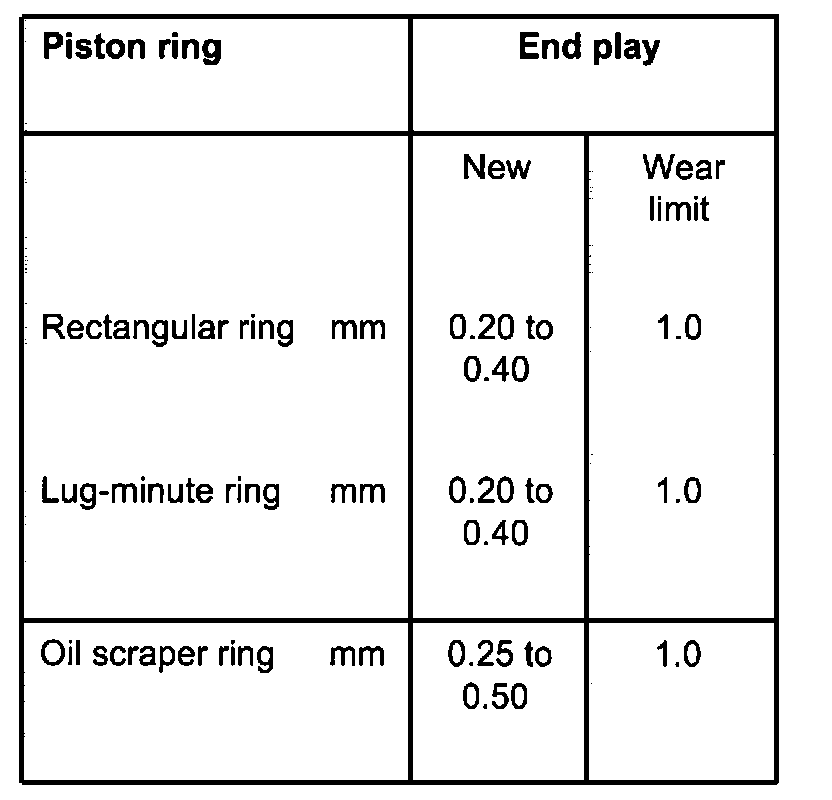

Piston Ring End Play Specifications Table
Piston Ring End Play Specifications Table:
