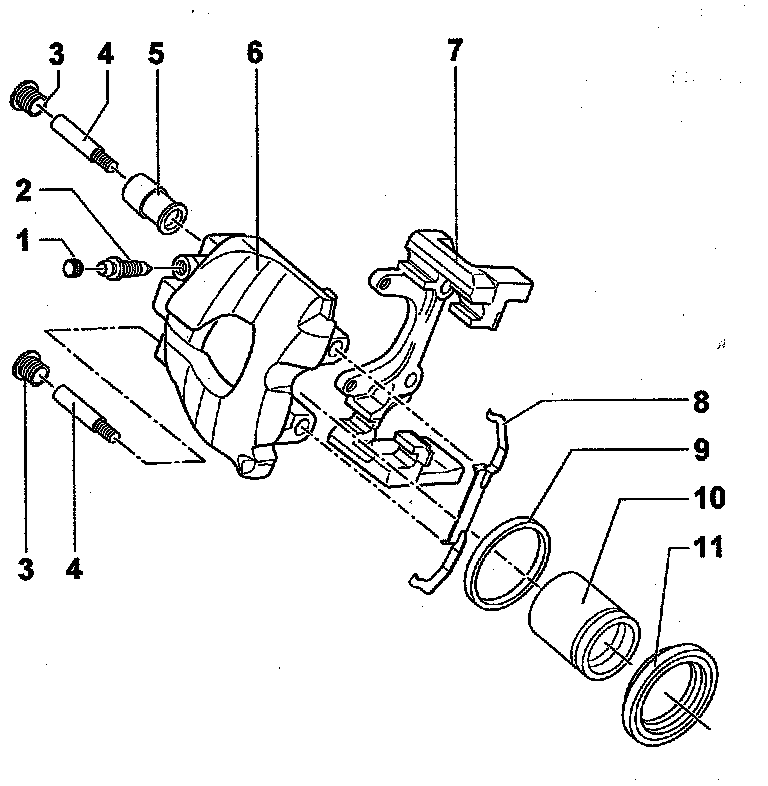

Teves/ATE Front Brakes (Caliper 1LU)

Legend
1 Protective cap
2 Bleed valve
3 Cap
4 Guide pin
5 Mounting bushing
6 Brake caliper housing
7 Brake carrier
8 Retaining spring
9 Seal
10 Piston
11 Protective seal
