Power Locks
Central locking system with remote control - from December 2000
^ Vehicles with right sliding door and tailgate
^ Vehicles with right sliding door and swinging doors
IMPORTANT NOTE
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

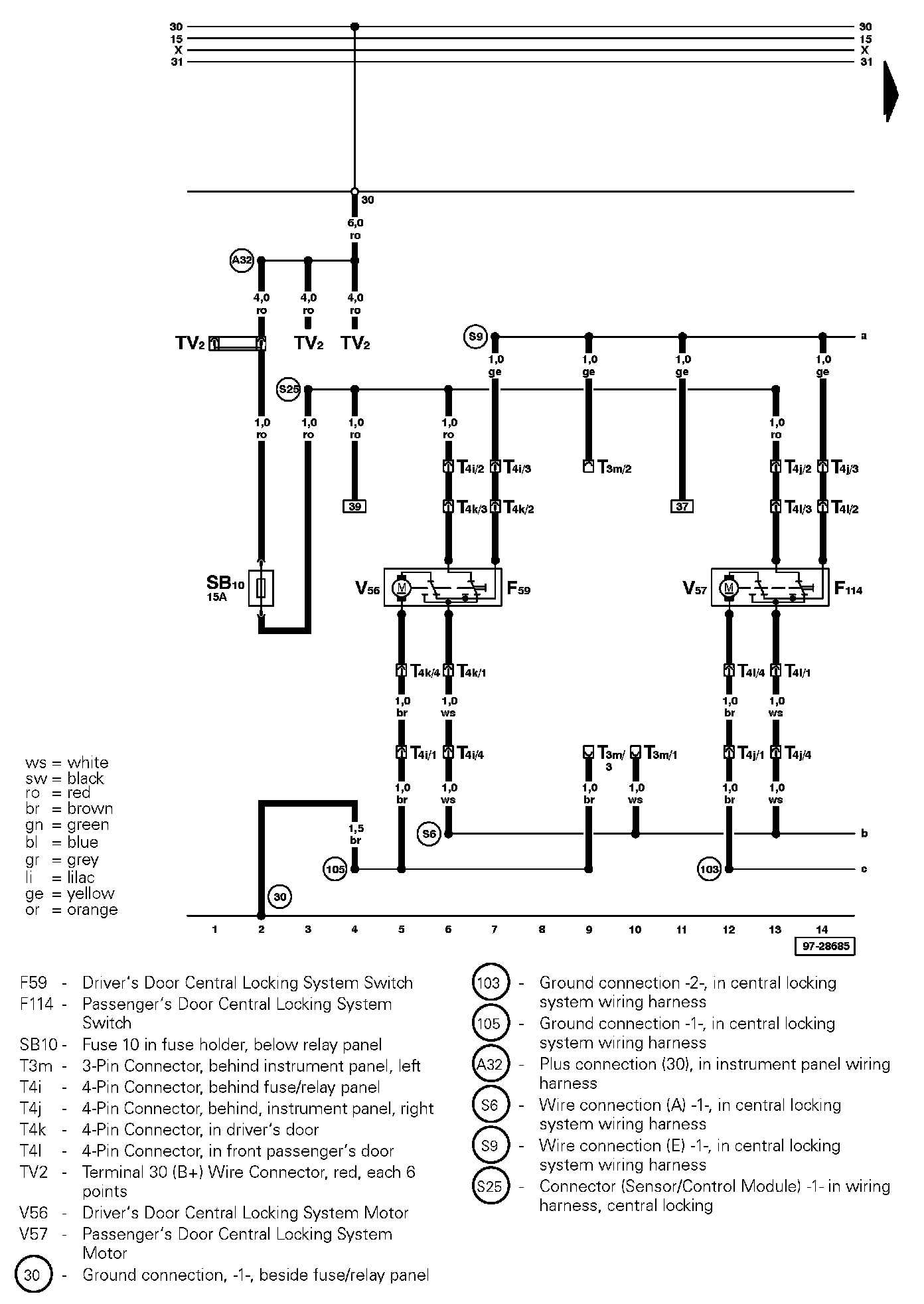

Track 1-14:

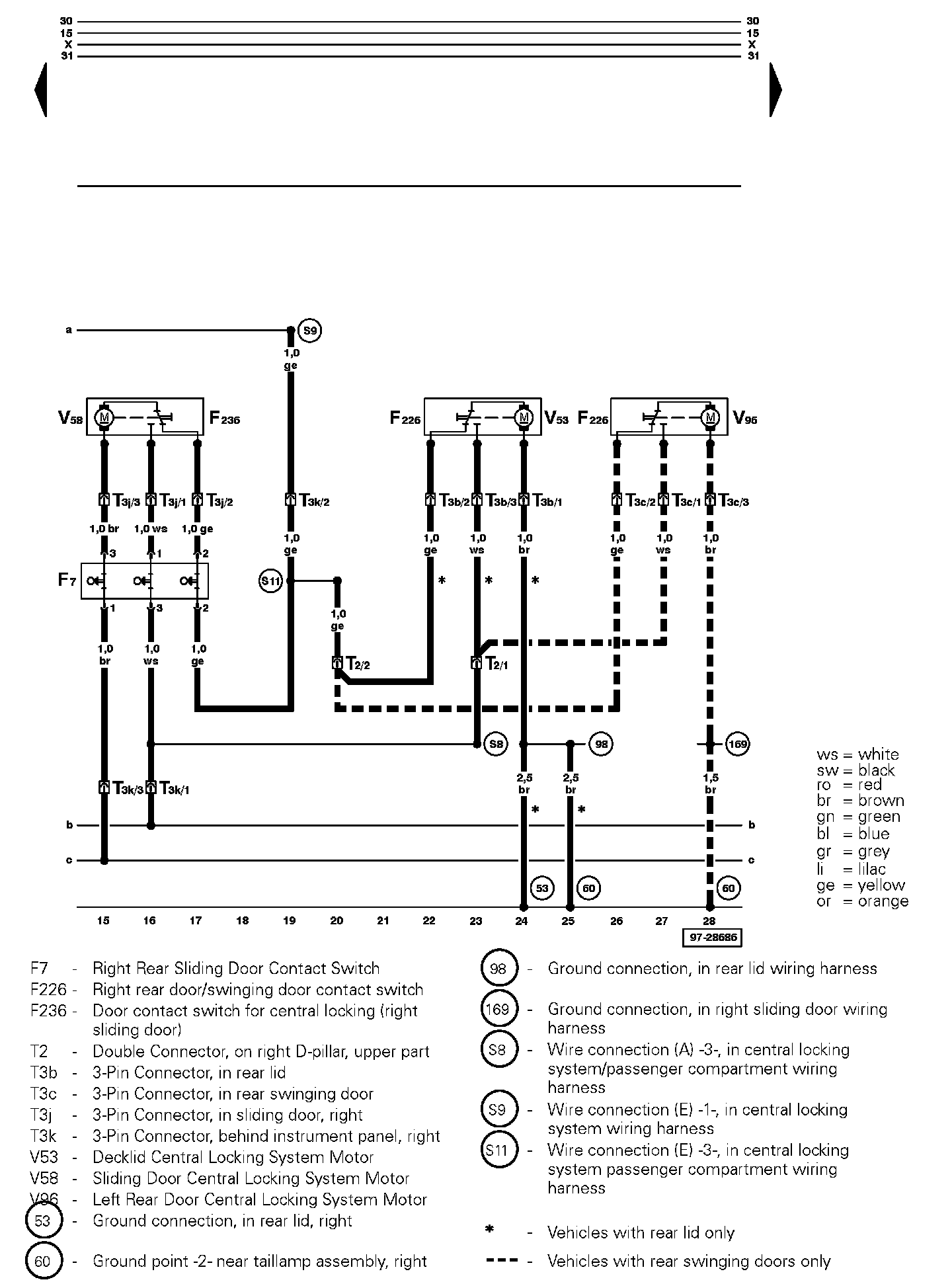

Track 15-28:

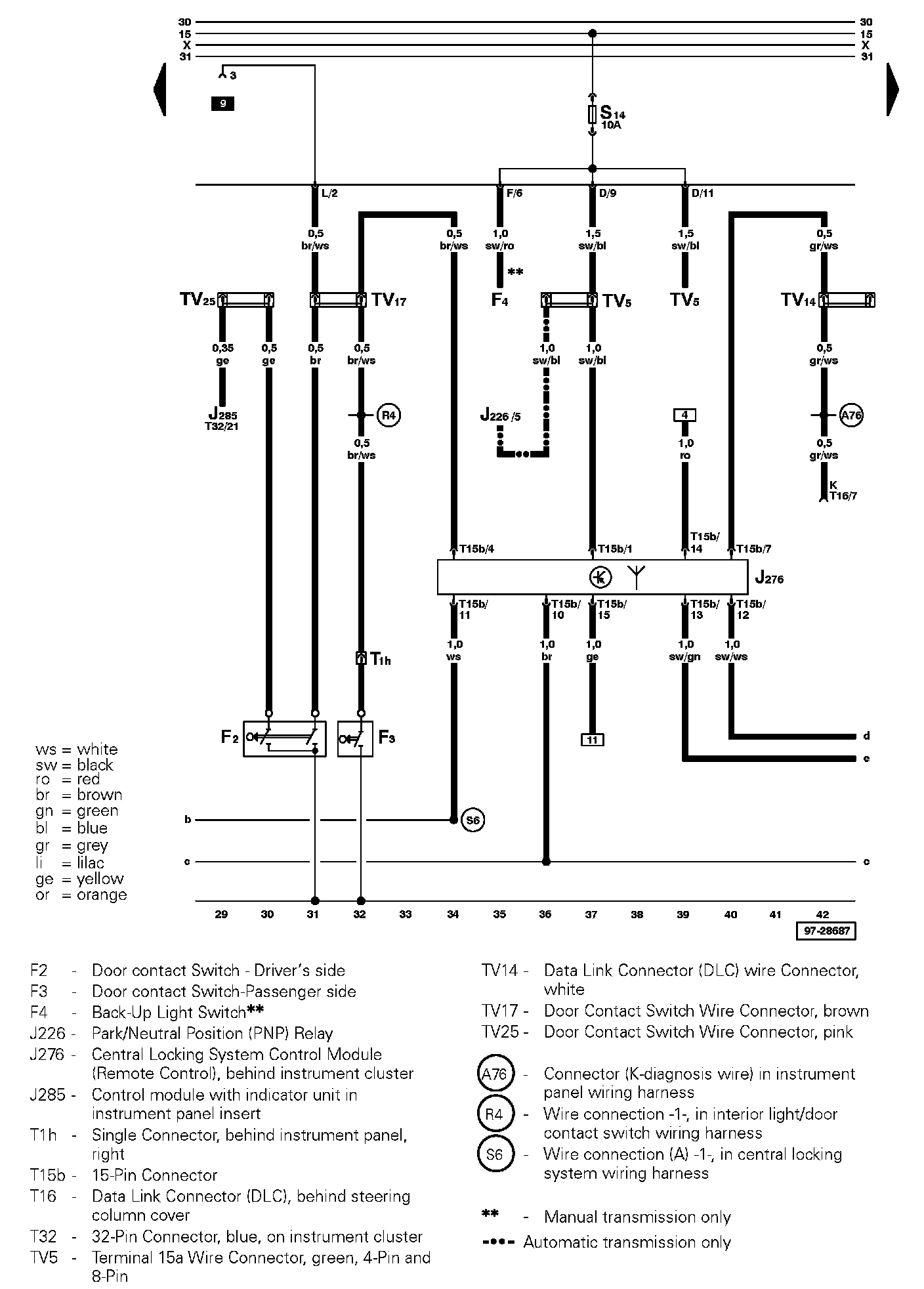

Track 29-42:

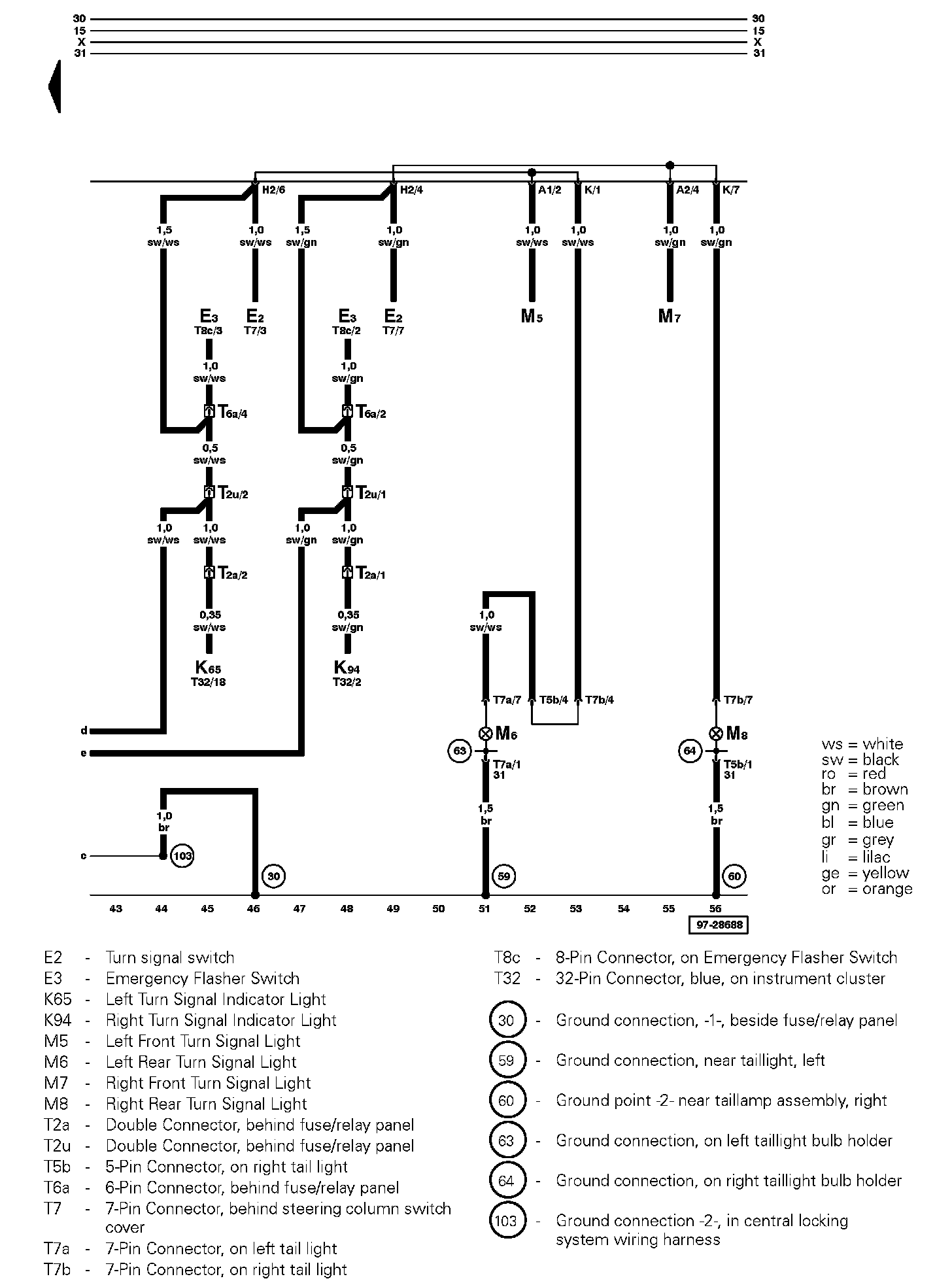

Track 43-56:
