ABS with EDL, ASC and ESP, From December 2000
Anti-lock brake system (ABS) with electronic differential lock(EDL), anti-slip control (ASC) and electronic stability program (ESP) - From December 2000
IMPORTANT NOTE
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

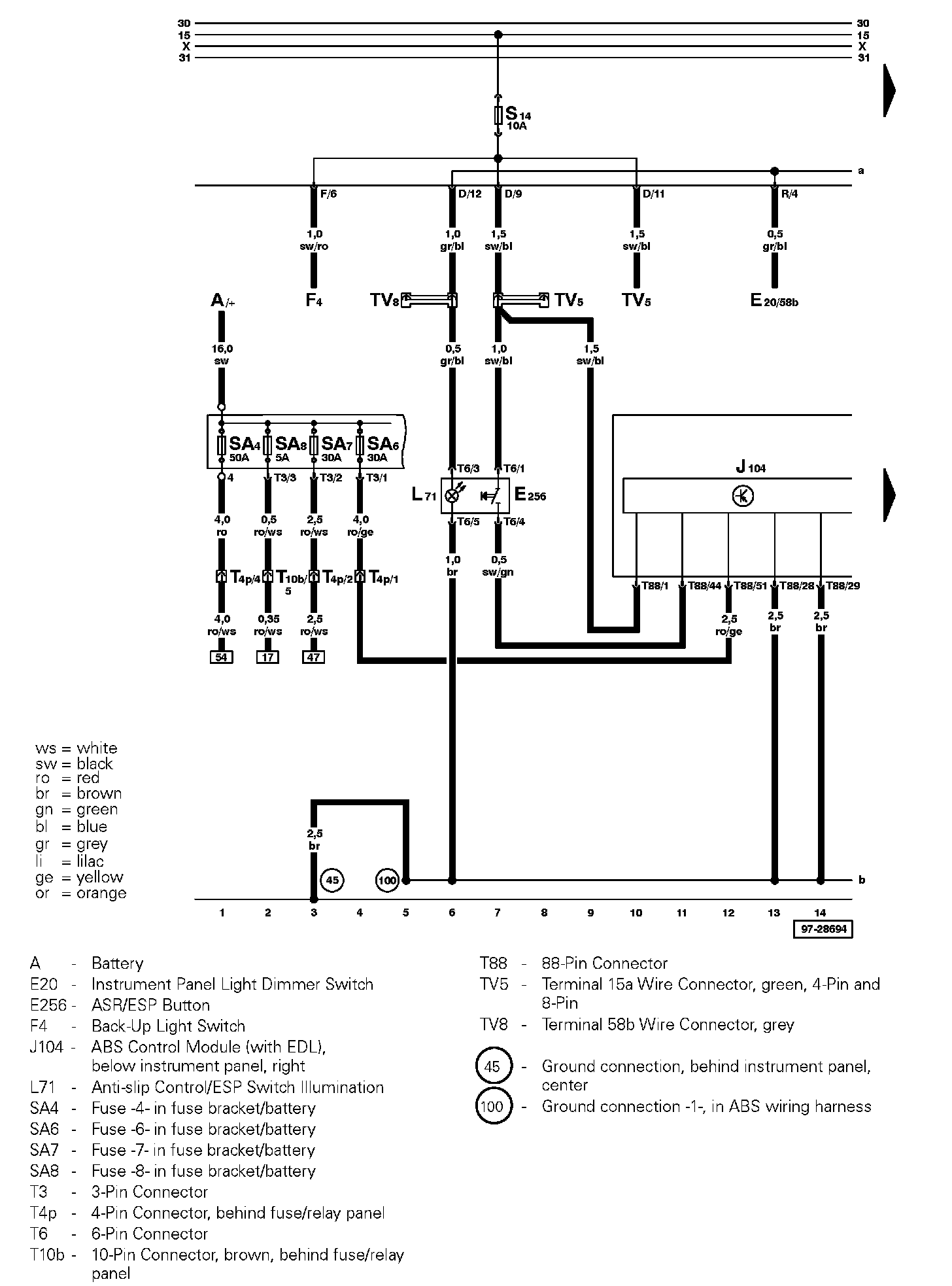

Track 1-14:

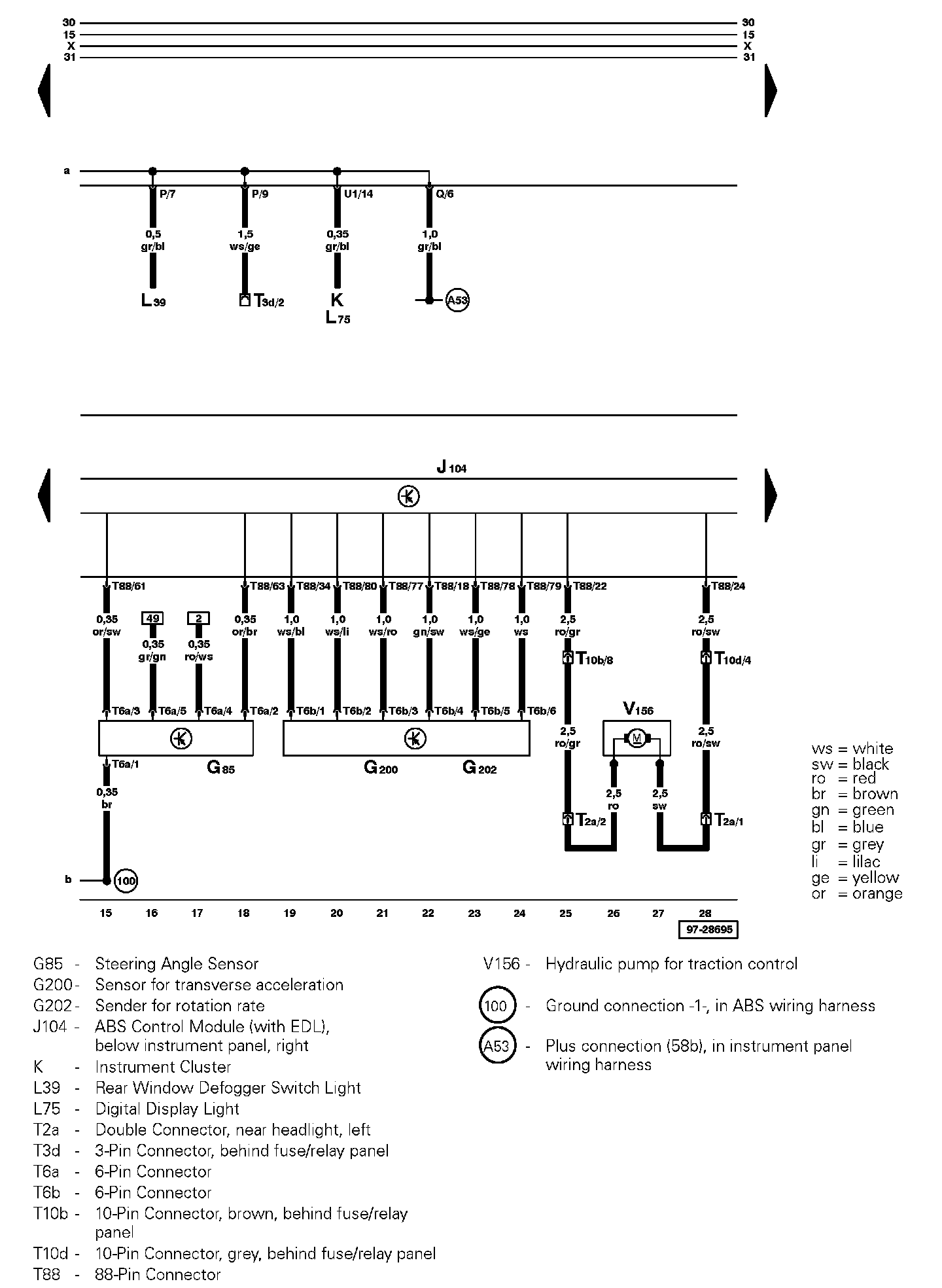

Track 15-28:

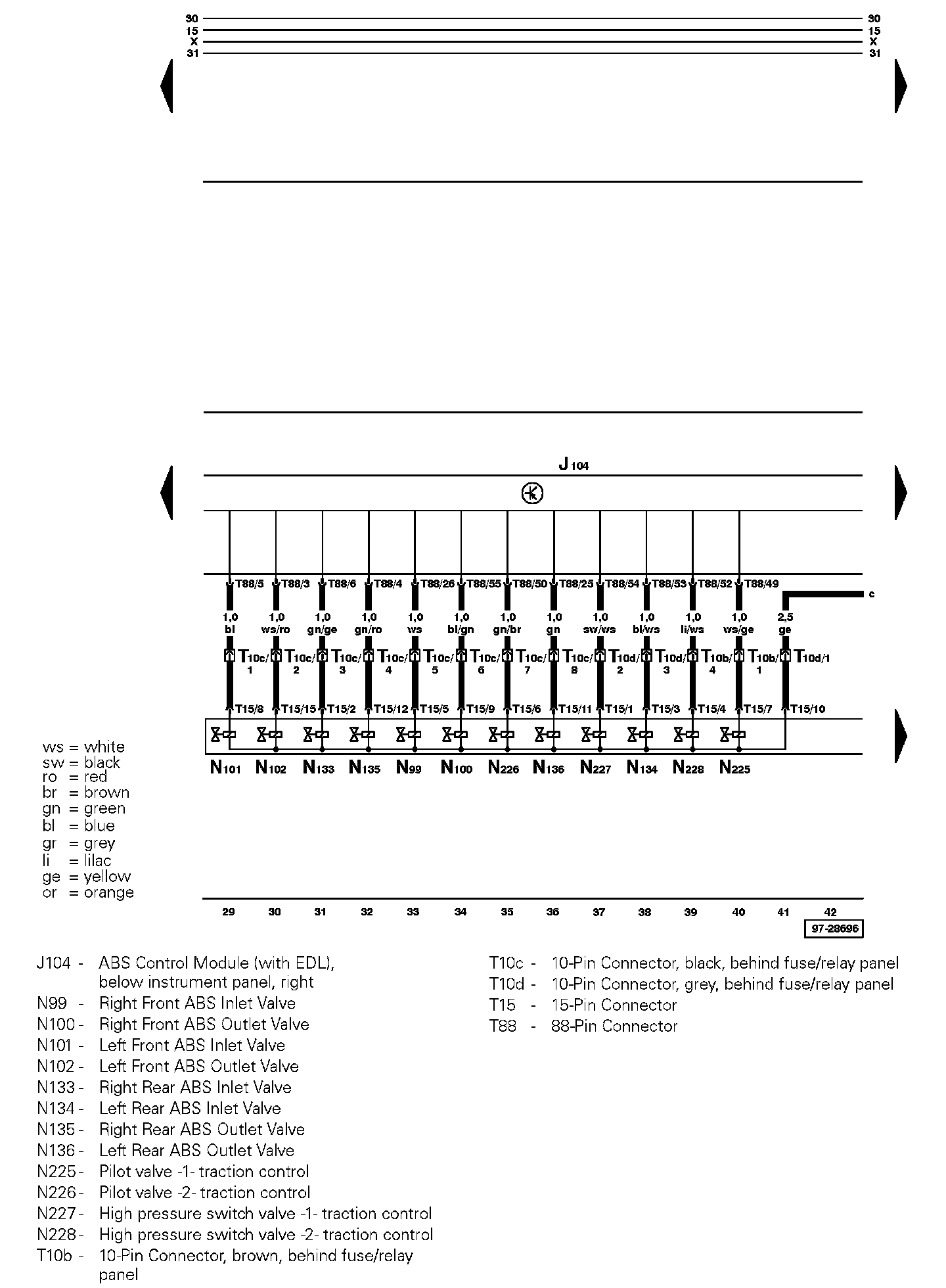

Track 29-42:

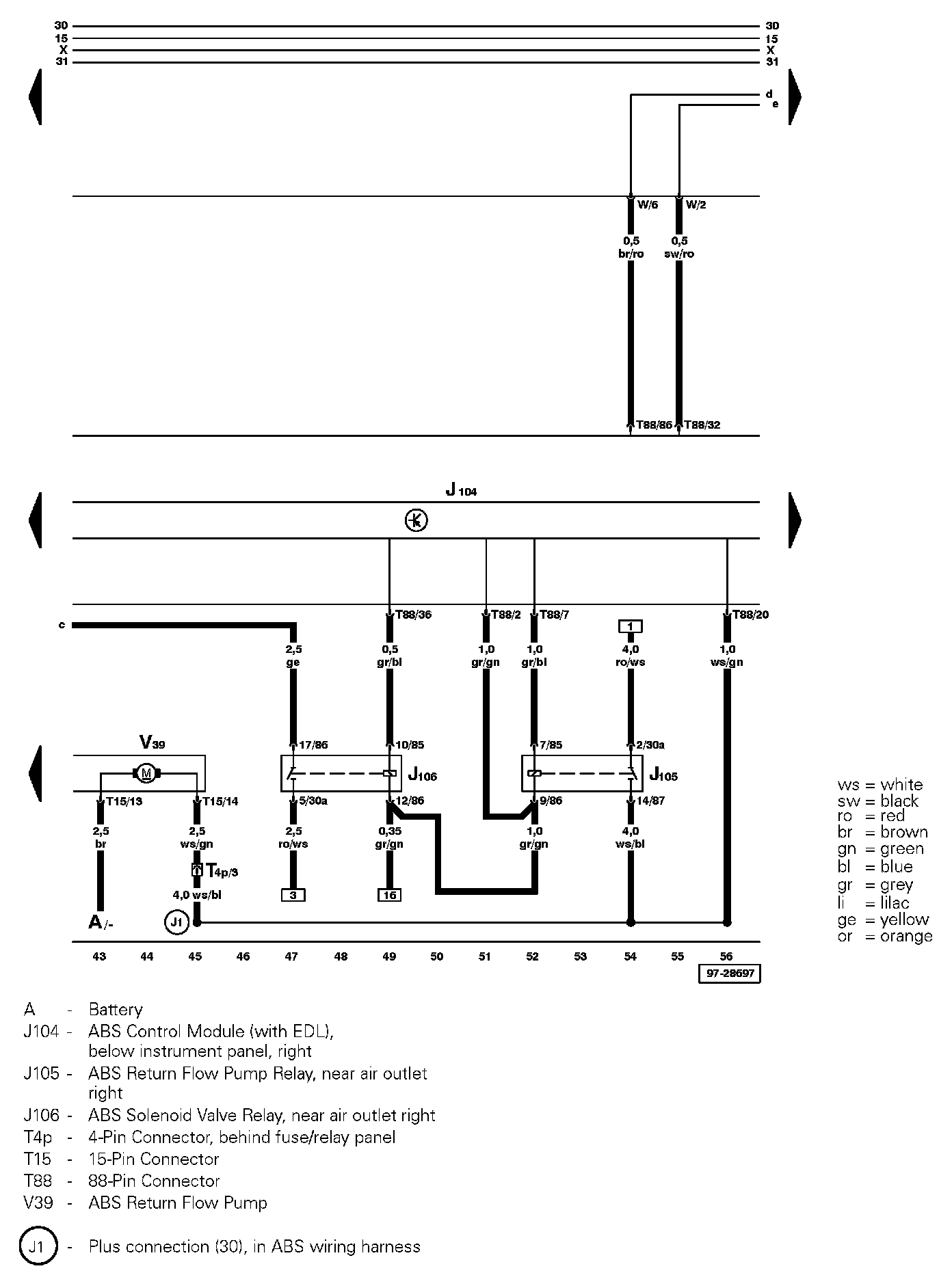

Track 43-56:

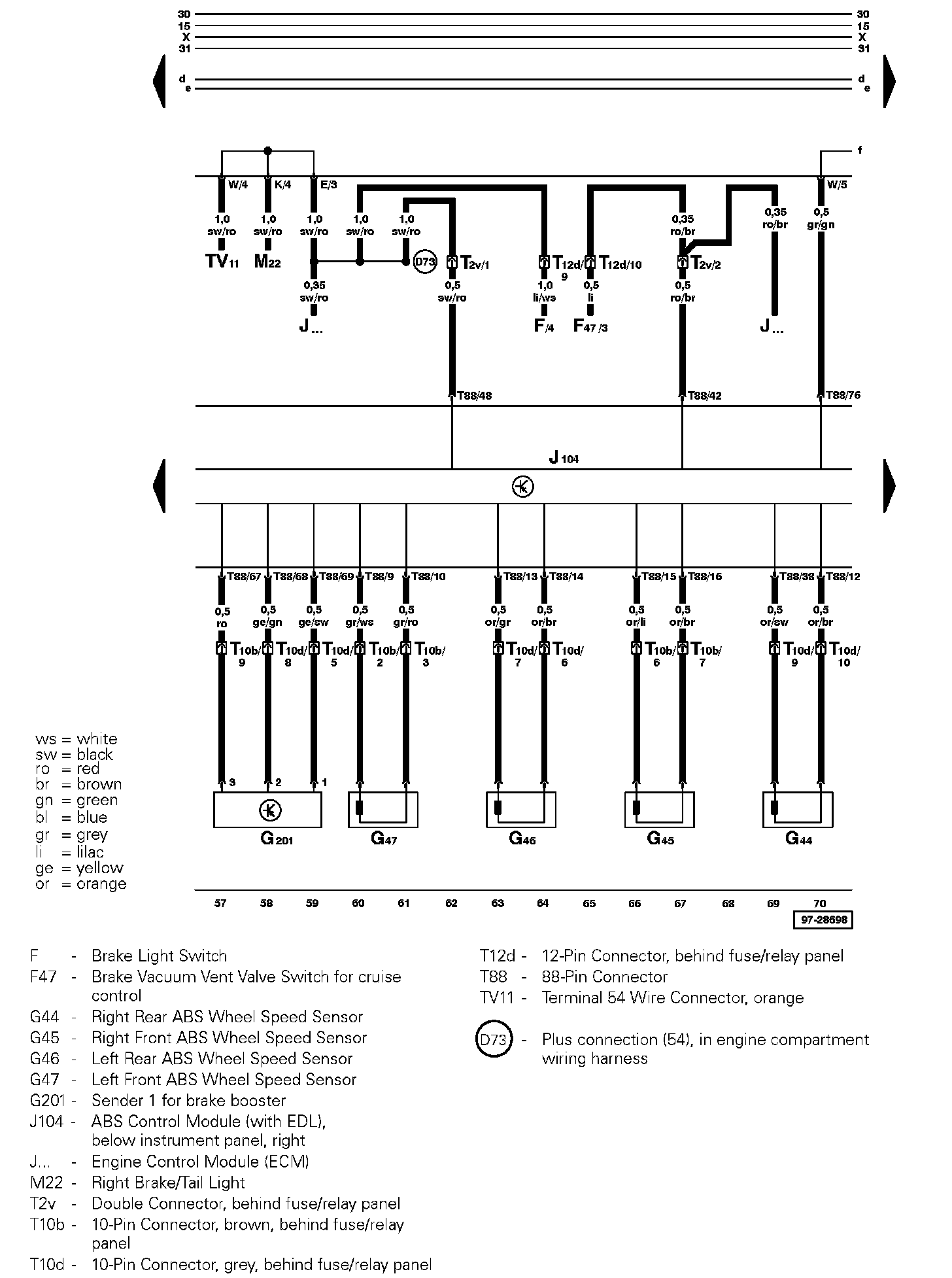

Track 57-70:

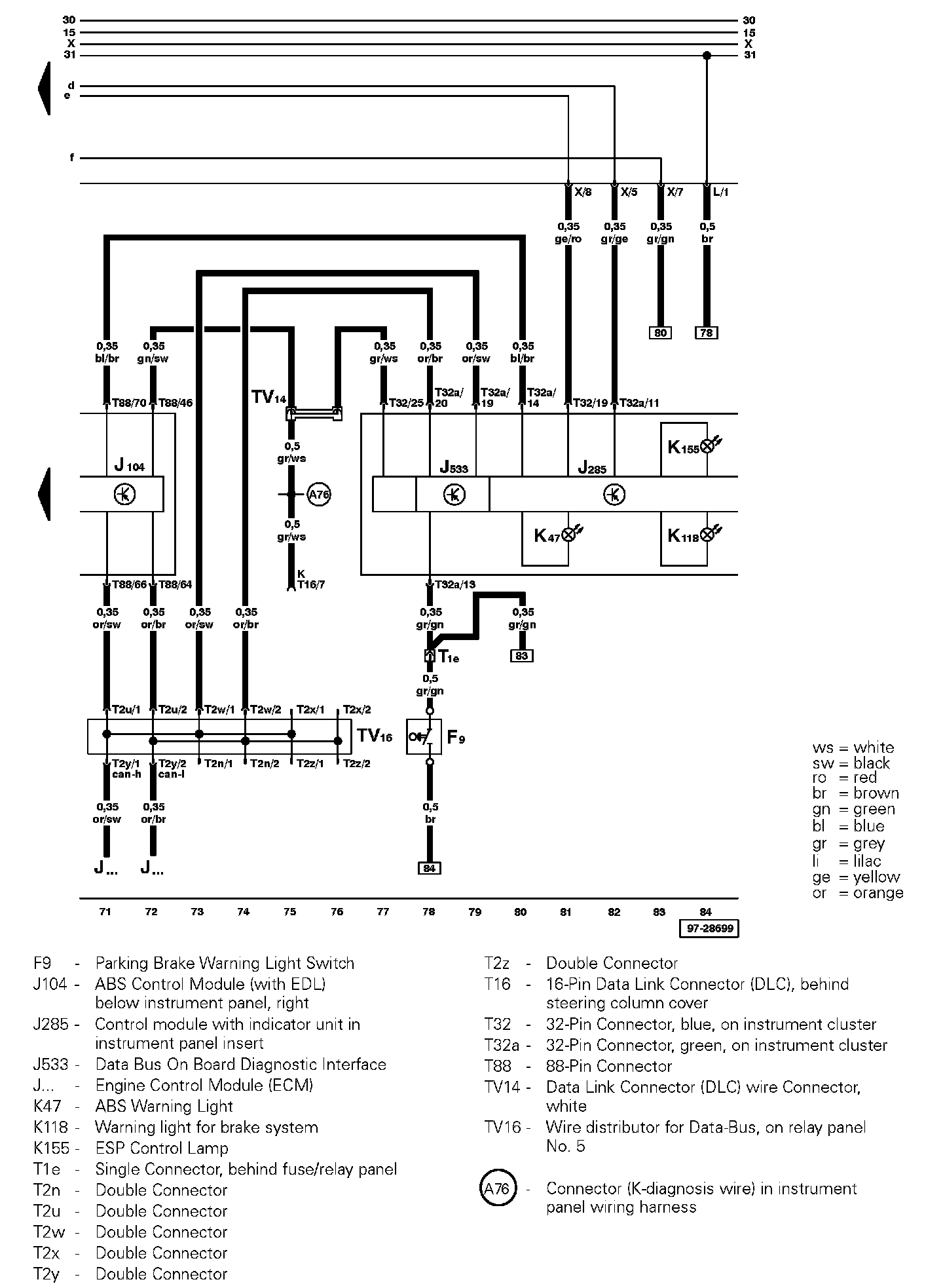

Track 71-84:
