32-Pin Multi-Connector, -T32A-, Green (With CAN-Bus Connection)

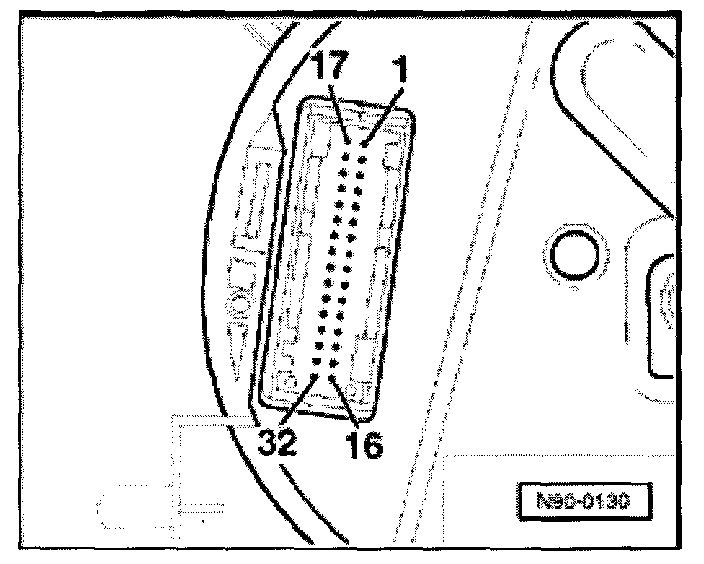

32-pin Multi-connector, -T32a-, Green







1 - 6 - Open
7 - Brake pad wear indicator
8 - 9 - Open
10 - Low fuel level warning
11 - Signal for vehicle stationary*
12 - A/C clutch cut-off - Engine Coolant Temperature (ECT) signal*
13 - Warning lamp for dual circuit brake system and handbrake
14 - Indicator lamp for traction control/ESP*
15 - 17 - Open
18 - Oil level thermal sensor*
19 - Interface - CAN Data Hi-Bus
20 - Interface - CAN Data Lo-Bus
21 - Open
22 - Hood alarm switch
23 - Multi Function Trip Computer (MFI)* - top row (forwards)
24 - MFI* - bottom row (backwards)
25 - MFI* - memory switch: reset
26 - MFI* - ambient temperature display
27 - 30 - Open
31 - Automatic transmission selector lever display
32 - Fuel consumption signal

*) Where applicable
