Identification of Front Calipers Via Optional Equipment Numbers

Vehicle Data Plate Location:

A different PR No. (optional equipment No.) is printed on the vehicle data plate for each brake caliper version.

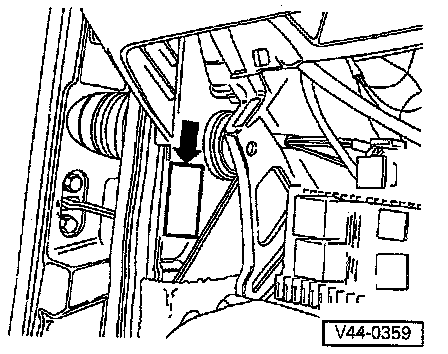

Data Plate Location: Left hand side A-pillar next to central electric unit.

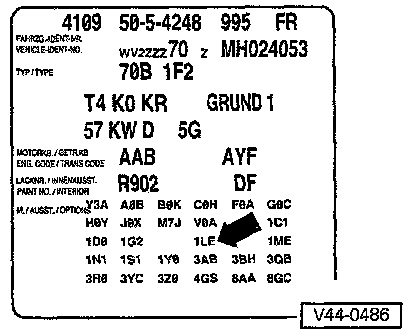

Identification and Location of optional equipment No. (PR No.) on Vehicle Data Plate.
- 1LU = Models with 15 inch wheels, floating caliper FN3/57 ITT
- 1LP = Models with 15 inch wheels, floating caliper Lucas C54
- 1LE = Models with 15 inch wheels, floating frame caliper Lucas RC 54
- 1LB = Models with 16 inch wheels, floating caliper FN3/57 ITT

NOTE: Depending on equipment level, the brake caliper code is printed in various locations on the Vehicle Data Plate.
