Erase DTC Memory (Function 05), End Output (Function 06)

Note:
^ All functions previously performed the VAG1551 can also be performed using the VAS5051 tester.

Requirements
^ DTC memory checked.

1. Erase DTC Memory
^ Press -> button.

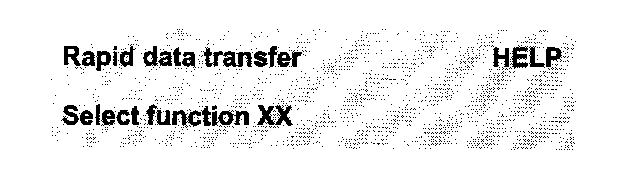

Indicated on display:
^ Press buttons -0- and -5- to select "Erase DTC Memory", function 05.





Indicated on display:
^ Press -Q- button to confirm input.

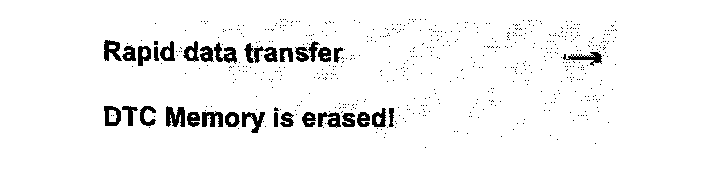

Indicated on display:
Press -> button.

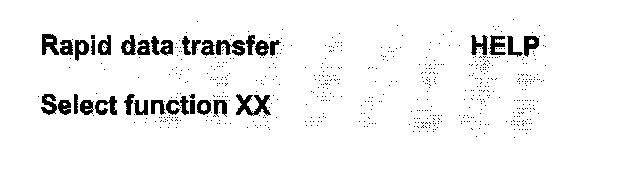

Indicated on display:

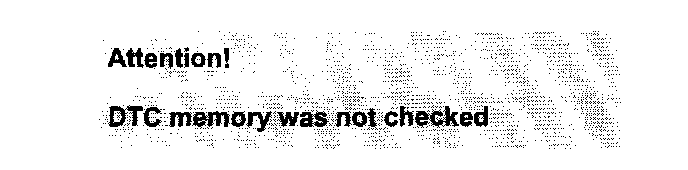

If displayed:

Note:
^ Follow test sequence exactly: first check DTC memory, then erase it.

2. End Output
Press buttons -0- and -6- to end output.

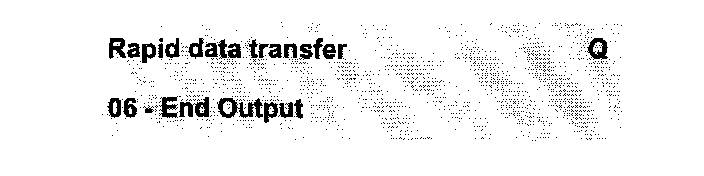

Indicated on display
^ Press -Q- button to confirm input.

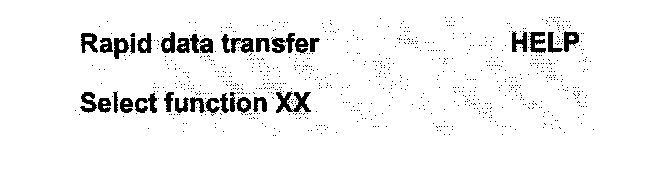

Indicated on display:
^ Switch off ignition.
^ Switch off ignition and disconnect diagnostic connector.
^ Switch on ignition.

The ABS Warning Light -K47- and the brake and parking brake warning light -K7- must go out after approximately 2 seconds.
