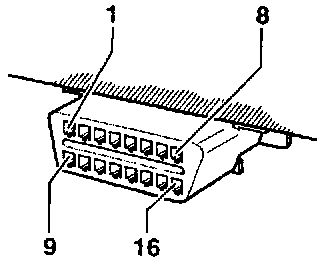

Data Link Connector (DLC) Terminal Assignmen

Legend
Terminal 4 = Ground (terminal 31)
Terminal 16 = Positive (terminal 30) via S21
Terminal 7 = K-wire via junction TV 14 (above relay plate), connector T1V to ABS control module -J1 04- contact 29

NOTE: DLC located vertically in vehicle.
