Bosch 5.0

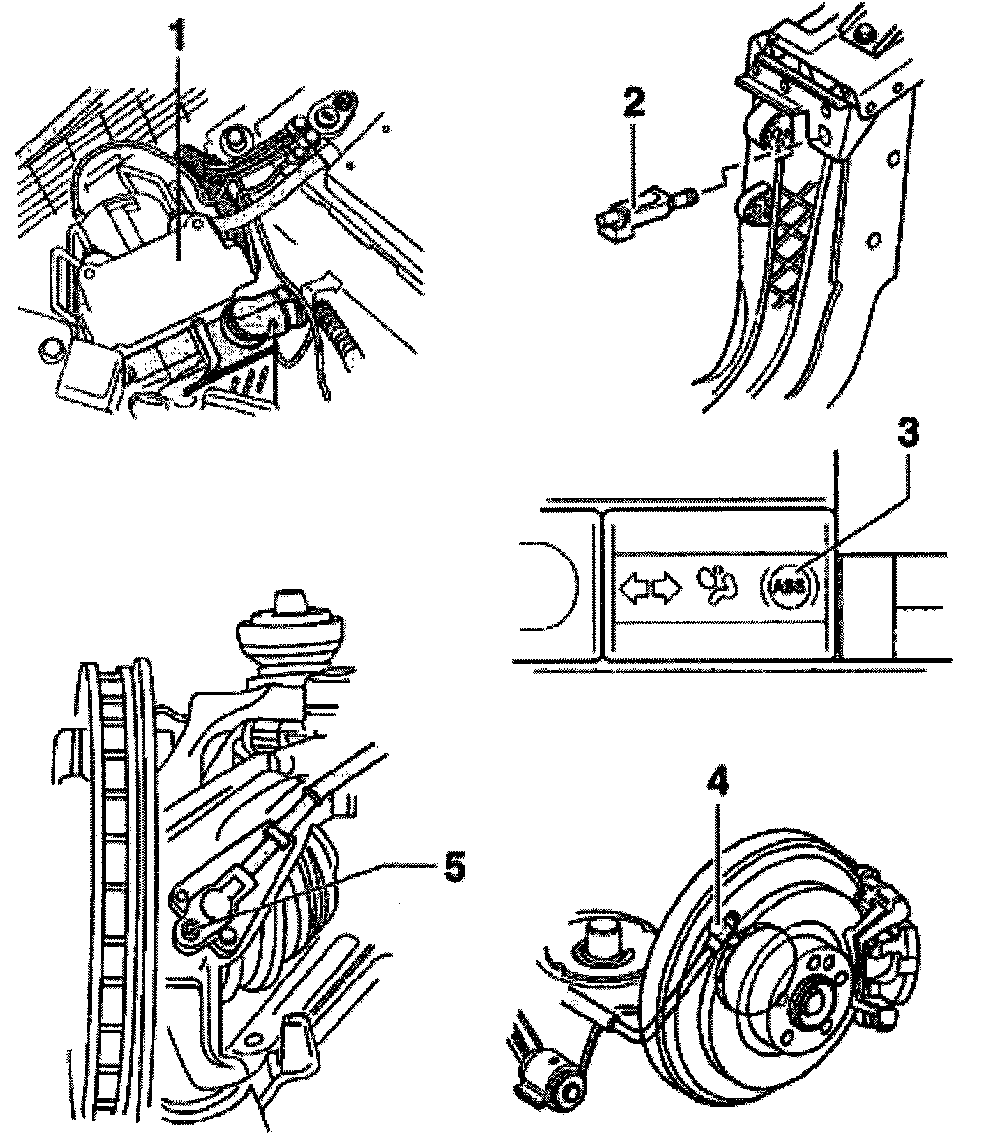

1 - ABS hydraulic unit -N55- with ABS control module (w/EDL) -J104-
^ Installation location: At left in engine compartment
^ ABS return flow pump -V39-, ABS hydraulic unit N55- and ABS control module (w/EDL) -J104 must not be separated from each other.
^ When replacing the hydraulic unit, always close old unit with plugs from repair set 1H0 698 311 A.
2 - Brake light switch -F-
^ Brake light switch is open in rest position
^ Can be checked in measuring value block.

3 - ABS Warning Light -K47-
^ Installation location: In instrument cluster

4 - Right and left rear ABS wheel speed sensors -G44- / -G46-
^ Checked electrically via On Board Diagnostic (OBD)
^ Before inserting sensor, clean inner surface of sensor mount and coat with securing grease G 000 650.
^ Tightening torque of bolt 10 Nm

5 - Right and left front ABS wheel speed sensors -G45- / -G47
^ Checked electrically via On Board Diagnostic (OBD)
^ Before inserting sensor, clean inner surface of sensor mount and coat with securing grease G 000 650.
^ Tightening torque of bolt 10 Nm
