Utility Storage Compartment: Service and Repair

Storage Area, Removing

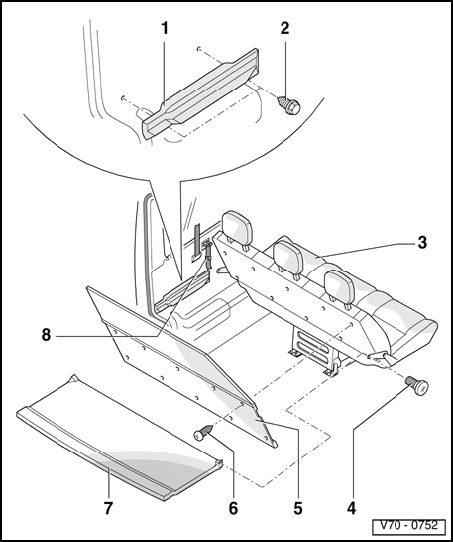

1 - Base
- Removing: Loosen hex screws - 2 -, if necessary, disconnect electrical connector for storage area lights

2 - Hex screw
- 18 Nm (13 ft lb)

3 - Bench seat (three place)
4 - Fillister head tapping screw
- 14 Nm (10 ft lb)

5 - Front part of storage area
- Removing: remove Phillips screws - 6 -.

6 - Phillips screws
7 - Rear storage area
- Removing:
- Remove full bench seat / bed.
- Remove screws - 4 -.

8 - Stop strap
- Only on left mounting point for back of full bench seat
