Tailgate Strap, Retrofitting

Tailgate Strap, Retrofitting


CAUTION!
Part numbers are for reference only. Always check with your Parts Department for latest Information.

Parts required

Vehicle with trim panel

Strap - Part No.701 829 621 01 C
Double Clip - Part No.701 829 623
2 FILLISTER head screws (B 4.8 x 22) N 012 971 3

Vehicle with molded trim

Strap Part No.:
703 829 621 01C
703 829 621 3KX
703 829 621 9UW
703 829 621 9XK
Double clip - Part No.701 829 623
2 FILLISTER head screws (B 4.8 x 38), Part No. N013 938 3

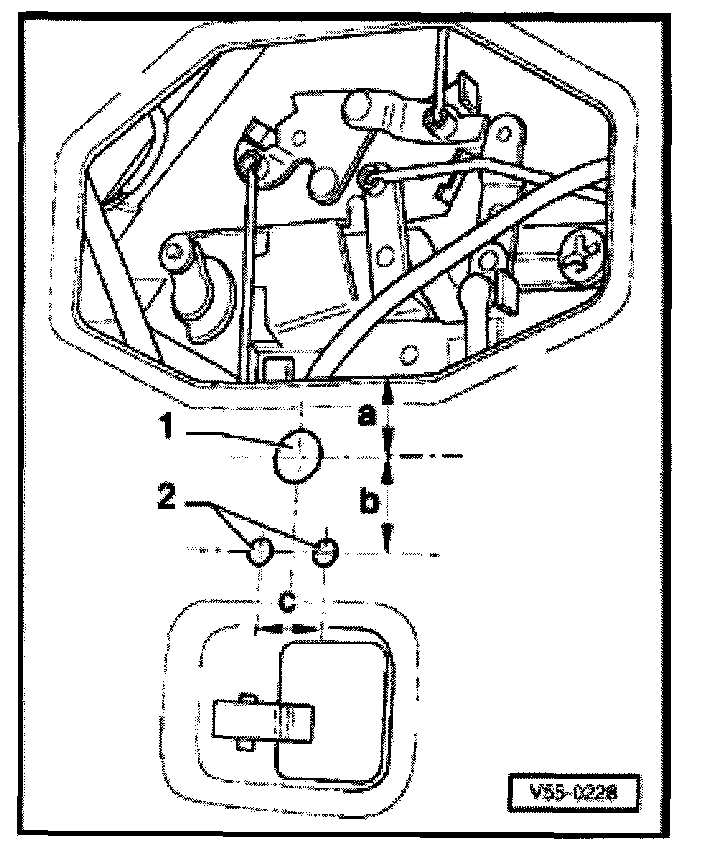

- Mark holes -1- and -2-, drill:

a = 22 mm (0.86 in.)
b = 29 mm (1.14 in.)
c = 21 mm (0.82 in.)
1 = 16 mm dia. (0.62 in.)
2 = 8.1 mm dia. (0.31 in.)

- Deburr holes and apply corrosion protection as necessary.


NOTE: The following method is suitable for paint damage in non-visible areas: coat twice (wet on wet) with glass/paint primer D 009 200 02 or equivalent, drying time approx. 10 minutes.

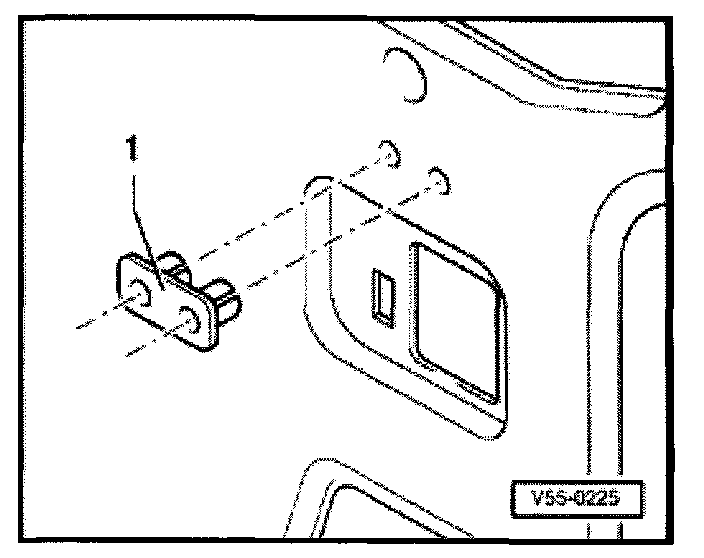

- Clip double clip -1- in two bottom holes.

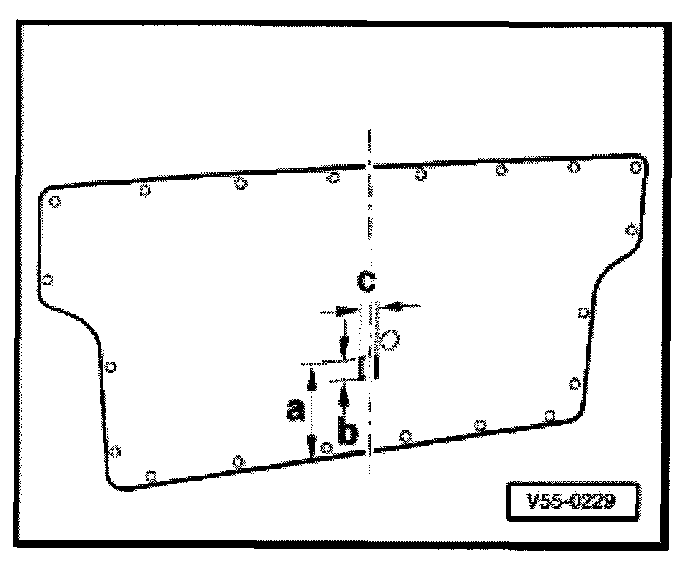

Trim panel (single)







- Draw cut out on trim according to these dimensions:

a = 220 mm (8.66 in.)
b = 42 mm (1.65 in.)
c = 35 mm (1.37 in.)

Drill through in the corner points with drill (8.0 mm dia.), cut out (e.g. with body saw VAG 1523 or equivalent).

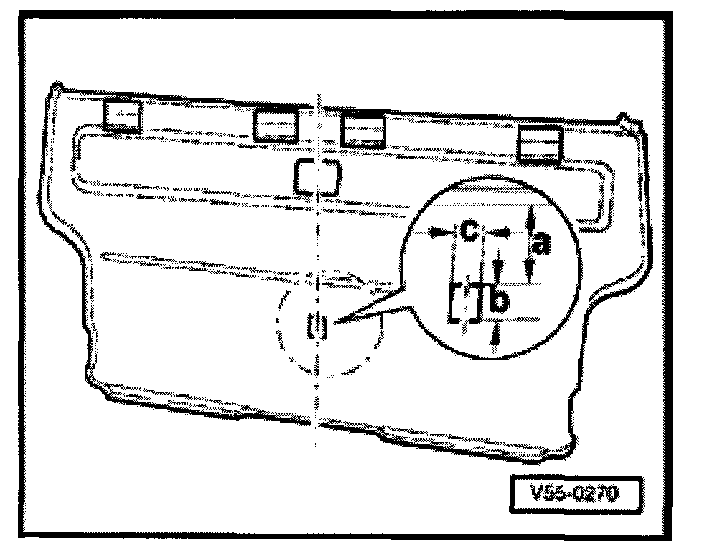

Molded trim panel







- Draw cut out on the back side of trim according to these dimensions:

a = 90 mm (3.54 in.)
b = 42 mm (1.65 in.)
c = 30 mm (1.18 in.)

Drill through in corner points with drill (8.0 mm dia.), cut out (e.g. with body saw VAG 1523 or equivalent)

- Mount trim panel or molded trim panel on tailgate.

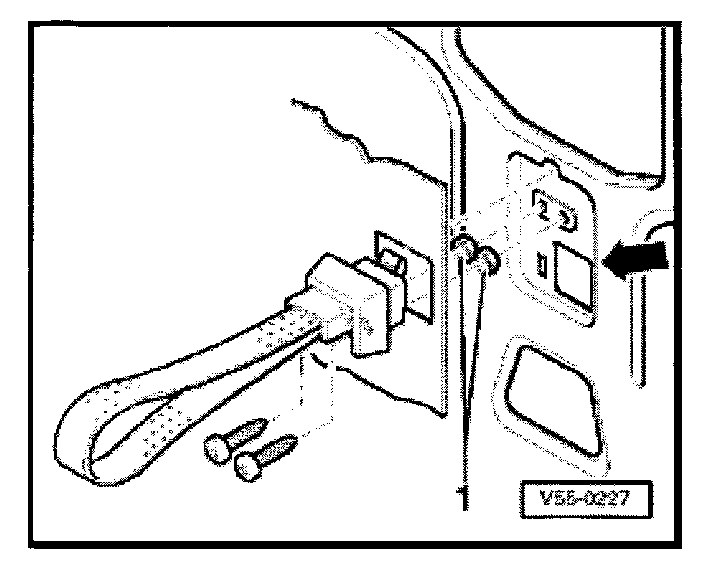

- Hook strap -1- with locking tab in upper hole -2-, fasten with FILLISTER screws -2-.







NOTE: On tailgates with large inner sheet metal recesses (arrow), two additional spacers, 5.0 mm (0.19 in.) height (e.g. nuts M6 -1-) are placed underneath for height adjustment
