Divider Post, Replacing

Divider post, replacing

Divider post, removing
- Depending on equipment version, remove trim and seats or seat benches
- Remove stop rail.
- Remove sealing frame

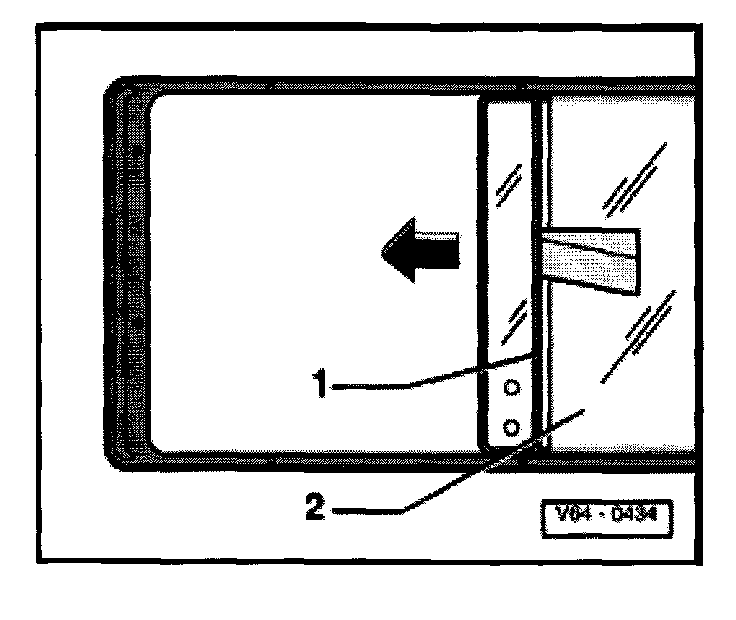

- Loosen divider post -1- from fixed window -2- by tapping with a piece of wood or plastic wedge.

Divider post, installing
- Clean fixed window with cleaning solution D 009 401 04 or equivalent and wipe dry with lint-free cloth.
- Install new divider post with silicone adhesive sealing compound (black) AMV 176 000 05 or equivalent.
- Curing time approx. 8 hours.
