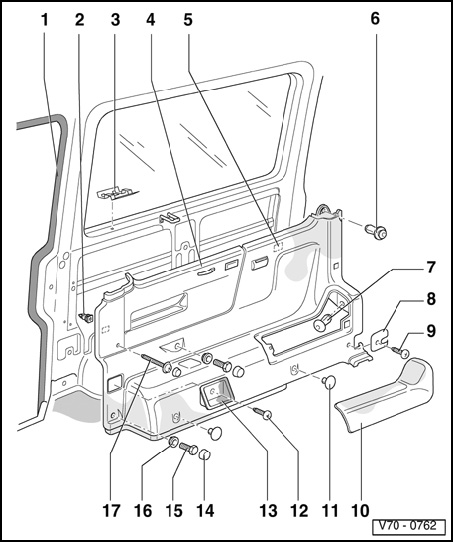

Rear Side Molded Trim (Right Side, Short Wheel Base), Components

Rear Side Molded Trim (Right Side, Short Wheel Base), Components

NOTE:
- Depending on equipment level, remove seats and/or seat benches , storage area.
- To remove rear side panel molded trim, first remove rear headliner trim, right upper B-pillar trim, right C-pillar trim, D-pillar trim, loosen the rear edge cover, left and right.







1 - Gasket
- Ensure correct positioning of rear side panel molded trim.

2 - Clip
- Two-piece
- Insert sleeve in C-pillar hole, install pin in trim.

3 - Spring clamp
4 - Rear side panel molded trim
5 - Clip
- On back
- Several located along window edge.

6 - Clip
- Two-piece
- Removing: Remove inner part with Allen wrench
- Installing: Press outer part and inner part into hole simultaneously

7 - Trim plug
8 - Guide cover
9 - Phillips screw
10 - Cover
11 - Plug
12 - Phillips screw
13 - Belt guide with closure strip
14 - Cap
15 - Hex bolt
- 40 Nm (30 ft lb)

16 - Spacer
17 - Phillips screw
- With washer and cap
