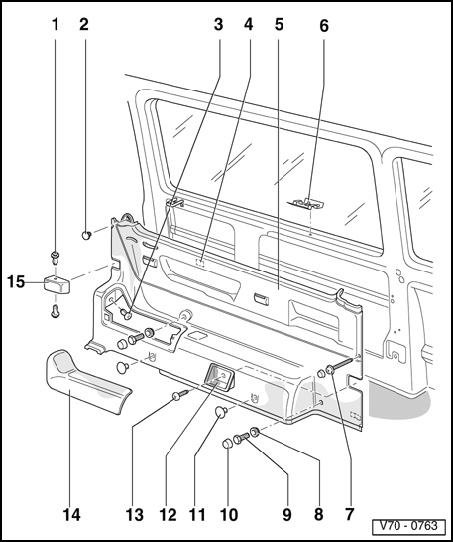

Rear Side Molded Trim (Left Side, Long Wheel Base), Components

Rear Side Molded Trim (Left Side, Long Wheel Base), Components

NOTE:
- Removal description is given for only one side, other side is mirror image.
- Depending on equipment level, remove seats and/or seat benches .
- To remove rear side panel trim, remove rear headliner trim, left B-pillar upper trim, left C-pillar trim, D-pillar trim, right and/or left rear edge cover.







1 - Clip
- Two-piece
- Removing: Remove inner part with Allen wrench
- Installing: Press outer part and inner part into hole simultaneously

2 - Cap
- From 12.91
- Up to 11.91, clip, item 1

3 - Trim plug
- From 12.91
- Up to 11.91, clip, item 1

4 - Clip
- On back
- Several located along window edge

5 - Rear side panel molded trim
6 - Spring clip
7 - Phillips screw
- with cap

8 - Spacer
9 - Hex bolt
- 40 Nm (30 ft lb)

10 - Cover
11 - Trim plug
12 - Belt guide with closure strip
13 - Phillips screw
14 - Cover
15 - Door stop cover
