Front Side Panel Molded Trim, Component Layout

Front side panel molded trim, component layout







NOTE:
- To remove front molded trim, remove upper B-pillar trim and C-pillar trim.
- Only loosen side panel molded trim at rear.
- Single seat (passenger compartment) is to be removed.

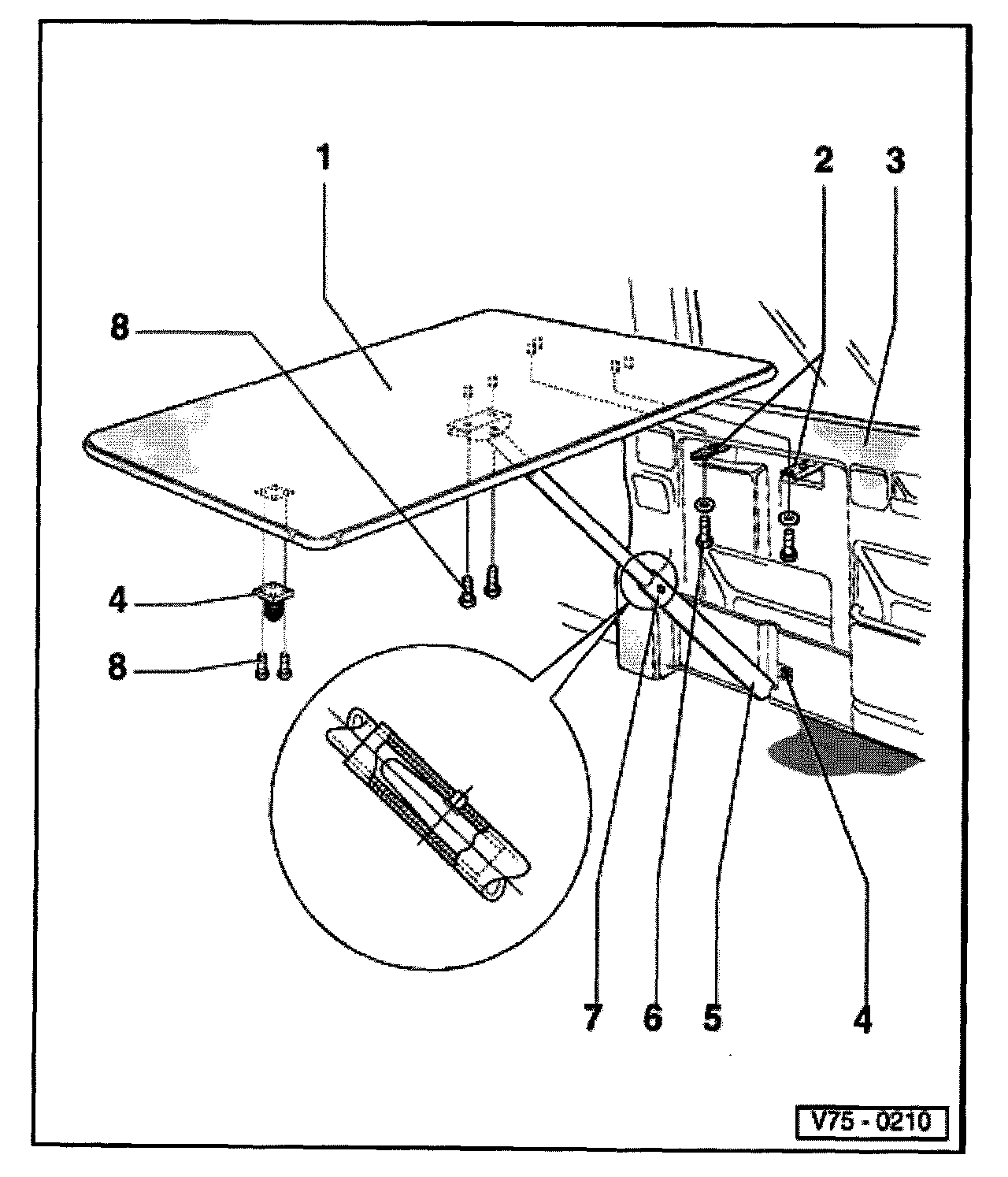

Part I
1 - Table top
2 - Mount
- Screws on body
3 - Side panel molded trim, front
4 - Catch
- Table folded down
5 - support
6 - Bolt
- With washer
7 - Catch
- To remove table, disconnect support
8 - Bolt

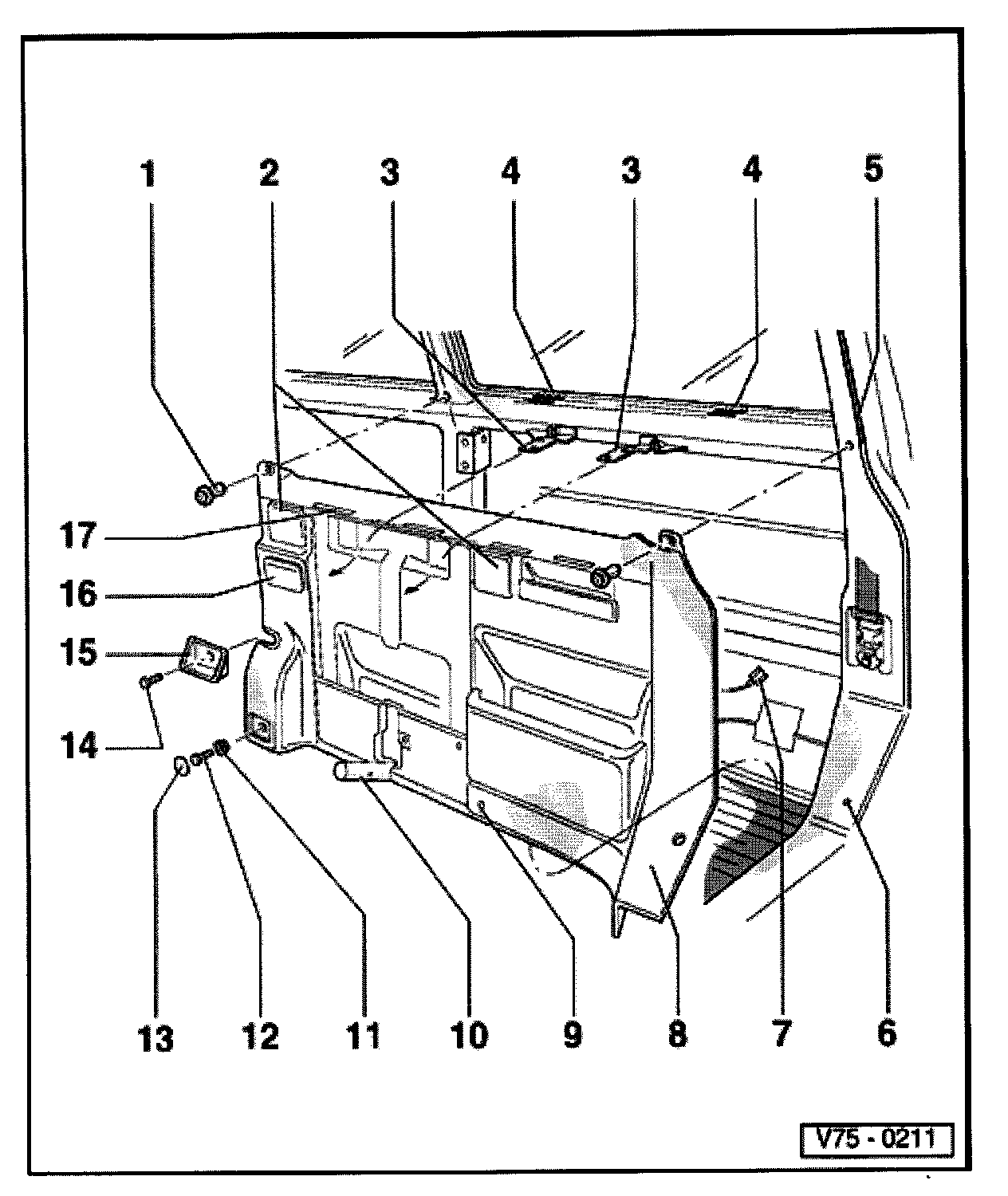

Part II
1 - Clip
- 2-part
- Removal: Remove inner section with Allen wrench.
- Installation: press in outer section and inner section simultaneously into mounting hole.
2 - cup holder
- Removal See fig. 1
3 - Mount
- Fastened onto body
- For table top
4 - Bracket
5 - Seal
- After mounting side panel molded trim front, ensure seal makes proper contact.
6 - Securing point for seat belt
7 - Connector, 12 V Socket -U5-
8 - Side panel molded trim, front
9 - 12 V Socket -U5-
10 - support, bottom section
- Fastened to body
11 - Washer
12 - Hex bolt
13 - Cap
14 - Recessed screw
15 - Belt guide with locking panel
16 - Ash tray
- Removal See fig. 2
17 - Clip
