D-Pillar Trim, Component Layout

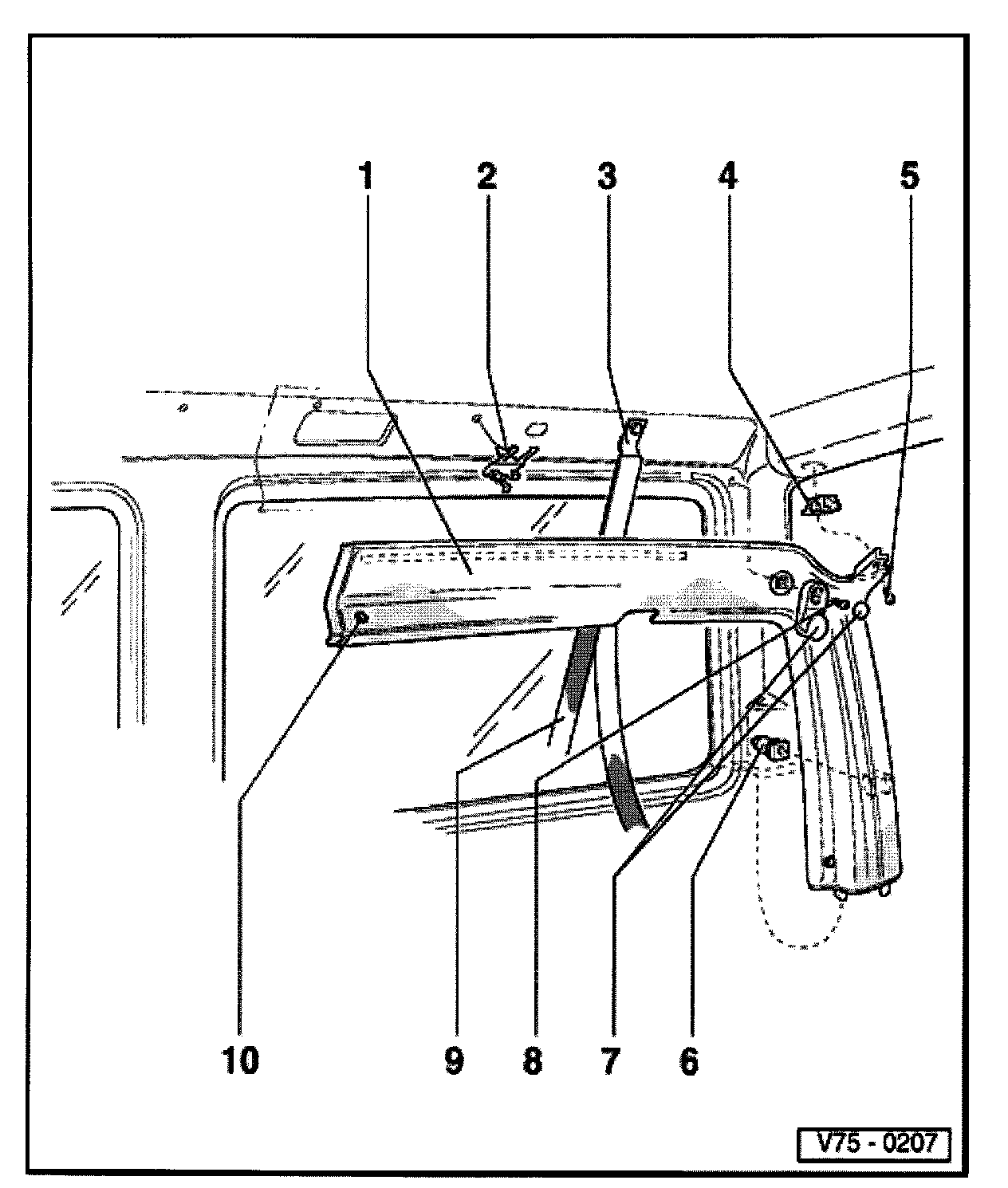

D-pillar trim, component layout


NOTE:
- Procedure is for one side, opposite side is mirror-image.
- To remove D-pillar trim, remove rear roof frame trim first, upper B-pillar trim and C-pillar trim.







1 - D-pillar trim
2 - Bracket
3 - Anchor, seat belt
- Bolted on window pillar with hex bolt
- 40 Nm(30 ft lb)
4 - Bracket
5 - Recessed screw
6 - Clip
- 2-part
- When mounting, insert sleeve in D-pillar mounting hole and pin in trim.
7 - Coat hook
- With cap for recessed screw
8 - Recessed screw
9 - Seat belt
10 - Press-stud
- Screws onto trim.
