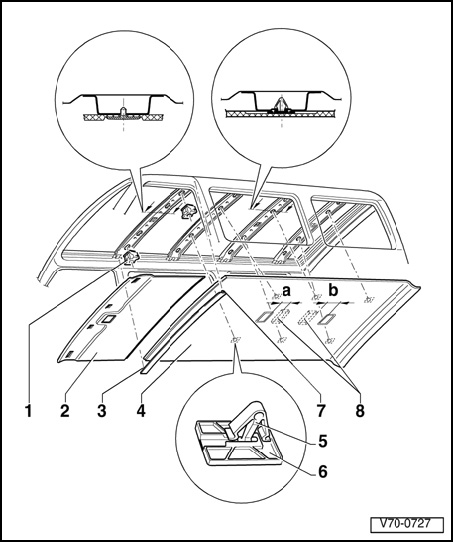

Molded Headliner, Component Layout

Molded Headliner, Component Layout







NOTE:
- To remove molded headliner in driver's compartment remove upper B-pillar trim, A-pillar trim.
- To remove molded headliner in passenger compartment first remove upper B-pillar trim, C-pillar trim and D-pillar trim as well as roof frame at rear.

1 - Bracket
- two, one on each side

2 - Molded headliner, driver's compartment
- Removal

3 - Masking strip
4 - Molded headliner, passenger compartment
5 - Clip
- six

6 - Clip holder
- six
- self-adhesive

7 - Clip
- eight

8 - Spacer pad
- Not applicable with air-conditioner
- Self-adhesive, is stuck on back of molded headliner in passenger compartment. a = 60 mm (2.4 in.)
- (Rear edge of cut-out for front interior light to front edge of spacer pad.) b = 60 mm (2.4 in.)
- (Front edge of cut-out for rear interior light to rear edge of spacer pad.)
- Two
