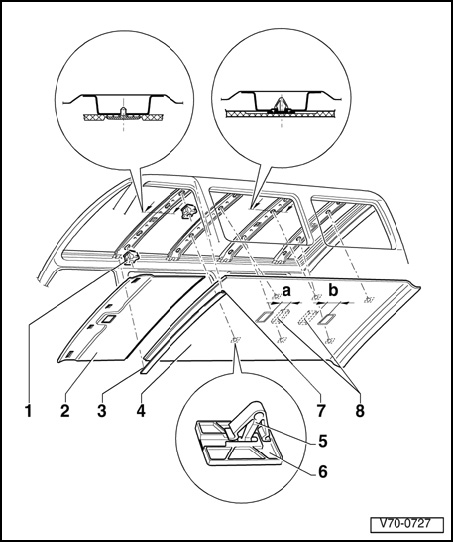

Molded Headliner, Components

Molded Headliner, Components

NOTE:
- To remove molded headliner in front passenger compartment, remove upper B-pillar trim, A-pillar trim.
- To remove rear molded headliner, remove upper B-pillar trim, C-pillar trim, D-pillar trim, rear headliner trim.







1 - Mounting clip
- Two-piece

2 - Front passenger compartment molded headliner
3 - Cover strip
4 - Rear passenger compartment molded headliner
5 - Clip
- Six pieces

6 - Clip holder
- Six pieces
- Self-adhesive

7 - Clip
- Eight pieces

8 - Spacer block
- Only on vehicles without A/C
- Two-piece
- Self-adhesive, glued to back of molded headliner
- a = 60 mm (approx. 2.4 in.) (back edge cut out for front interior light to front edge of spacer block)
- b = 60 mm (approx. 2.4 in.) (front edge cut out for rear interior light to rear edge of spacer block)
