Headliner Trim (Rear), Components

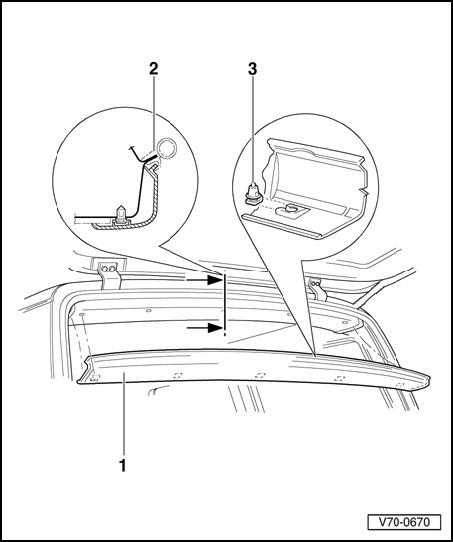

Headliner Trim (Rear), Components







NOTE: On vehicles with double doors, slight differences have no influence on removing and installing.

1 - Rear headliner trim
- Removing: Carefully unclip and remove
- Installing: Press clips - 3 - into holes and ensure correct gasket fit - 2 -

2 - Gasket
3 - Clip
- Two-piece
- Installing: insert sleeve in headliner hole, install pin in headliner through trim
