Radiator Grille, Removing and Installing

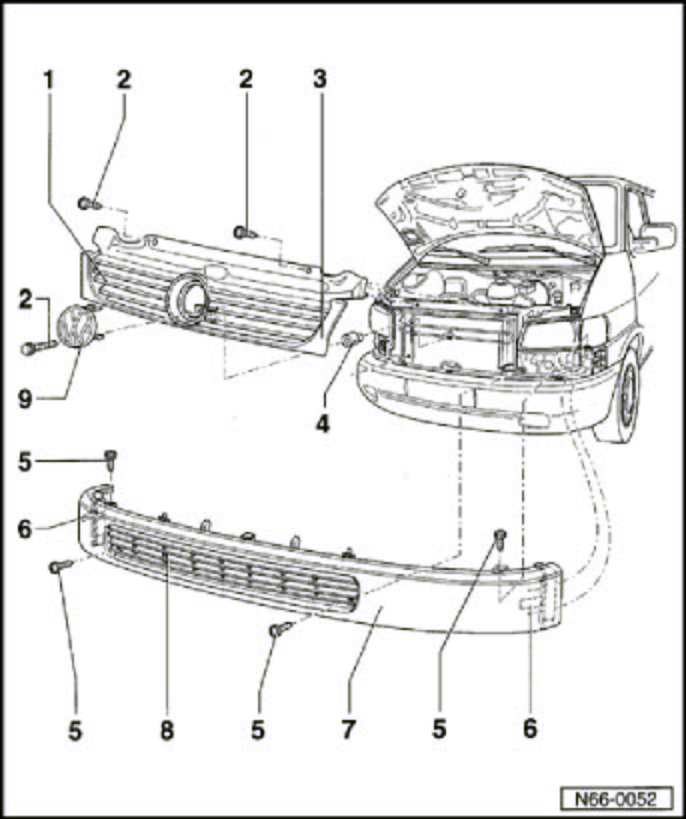

Radiator Grille, Removing And Installing (From 01.96)







1 - Radiator grille, upper
- Grille is clipped together with trim frame
- Grille with trim frame, removing
- Remove screw/washer assemblies - 2 -, pull upper radiator grille upward with trim frame

2 - Screw/washer assembly
3 - Trim frame, upper
- Remove with upper radiator grille

4 - Bonded rubber bushing
5 - Screw/washer assembly
6 - Unlocking lever
- Necessary to unlock the corners

7 - Lower trim frame
- Remove together with bottom radiator grille
- Painted in vehicle color

8 - Lower radiator grille
- Radiator grille: material- ASA
- Lower radiator grille is clipped and screwed together with trim frame
- Remove turn signal lights and loosen side latches with unlatching levers - 6 -, take out combination screw and washer assemblies - 5 -, pull radiator grille with trim frame up and out.

9 - Company logo
- Clipped into radiator grille
