Radiator Grille With Trim Frame, Removing and Installing

Radiator Grille With Trim Frame, Removing And Installing (From 01.96)

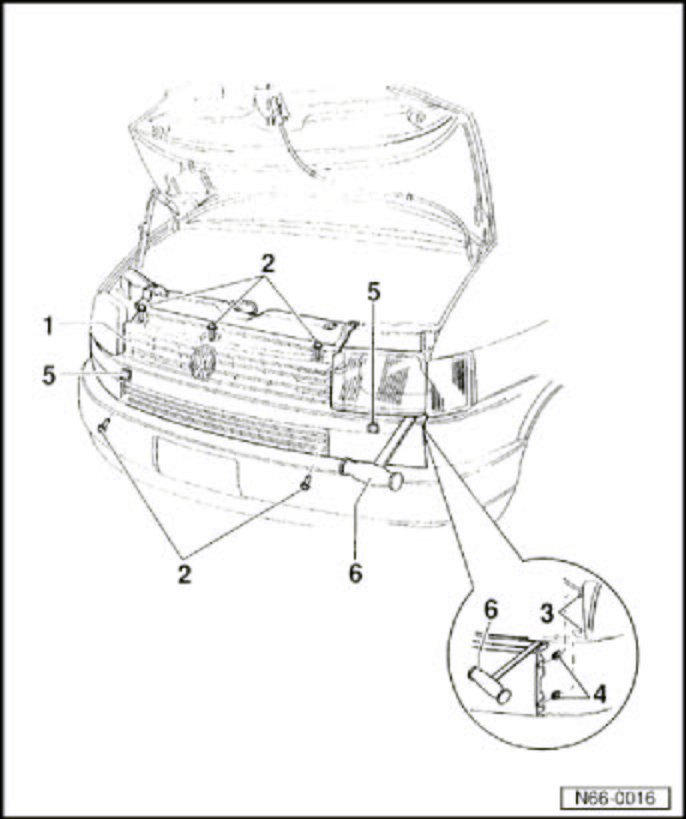

1 - Radiator grille with trim frame
2 - Combination screw/washer assembly
3 - T bolt
4 - Fastening clip
5 - Spray nozzle
6 - Special tool 3370

NOTE: In order to fold radiator down, radiator grill with trim frame must be removed.

Removing
- Remove combination screws - 2 -.
- Remove (pull out) spray nozzle - 5 - (if equipped) on left and right side.
- Hook special tool 3370 - 6 - on trim frame below headlight.
- Pull radiator grille with trim frame - 1 - off T bolt on left and right side.

Installing
Damaged clips - 4 - must be replaced before installing radiator with trim frame.
- Clip radiator grille with trim frame on left and right side at the same time.
