Display Groups 90 to 95 (Power Enhancement)




Camshaft adjustment

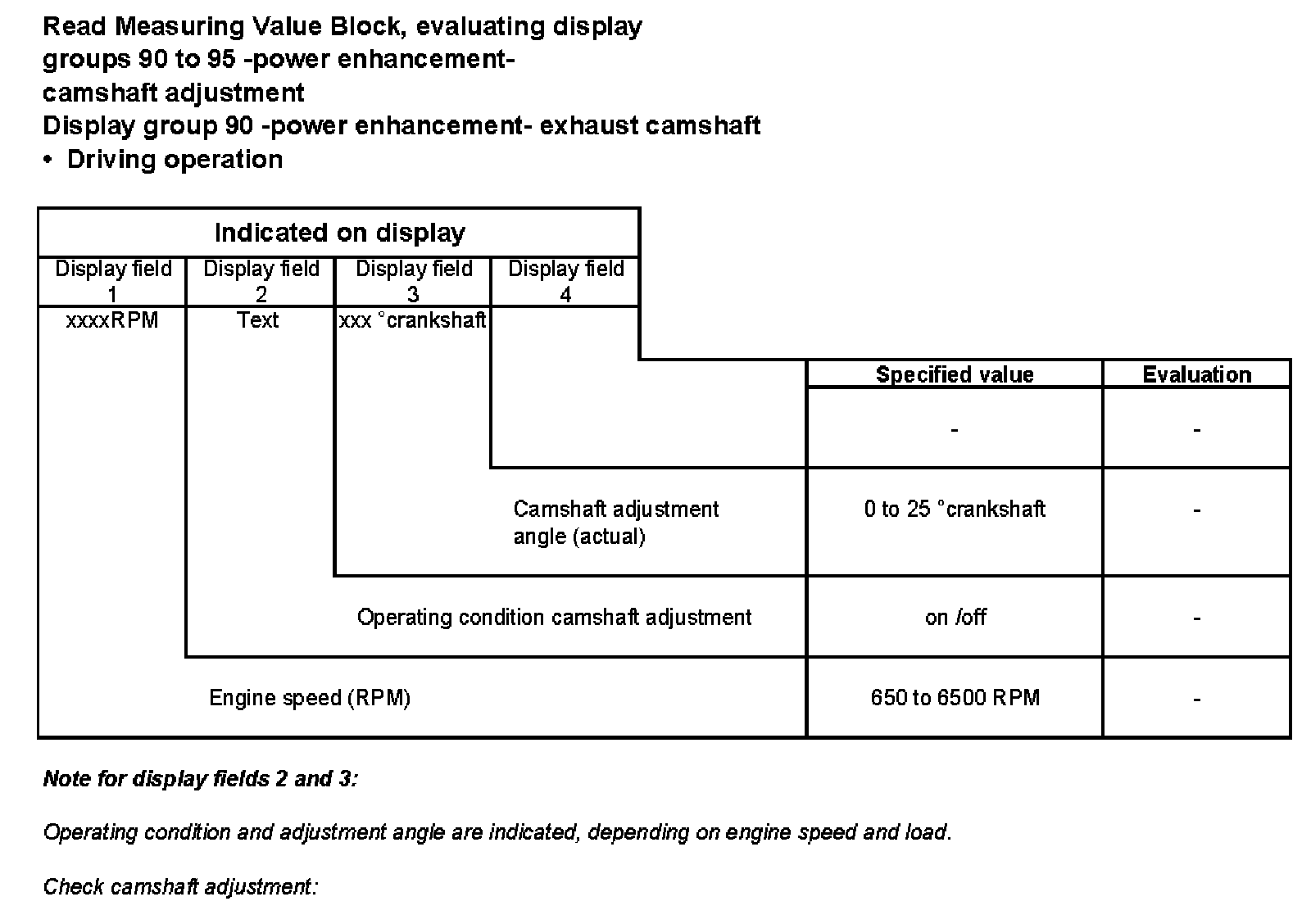

Display group 90 -power enhancement- exhaust camshaft


Read Measuring Value Block 90:






Display group 91 -power enhancement- continuous camshaft adjustment, Intake camshaft


Read Measuring Value Block 91:






Display group 95 -power enhancement- Intake manifold change-over


Read Measuring Value Block 95:
