Volkswagen Truck
>>
2002
>>
Eurovan Camper V6-2.8L (AXK)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Wiring Diagram Index
Wiring Diagram Index

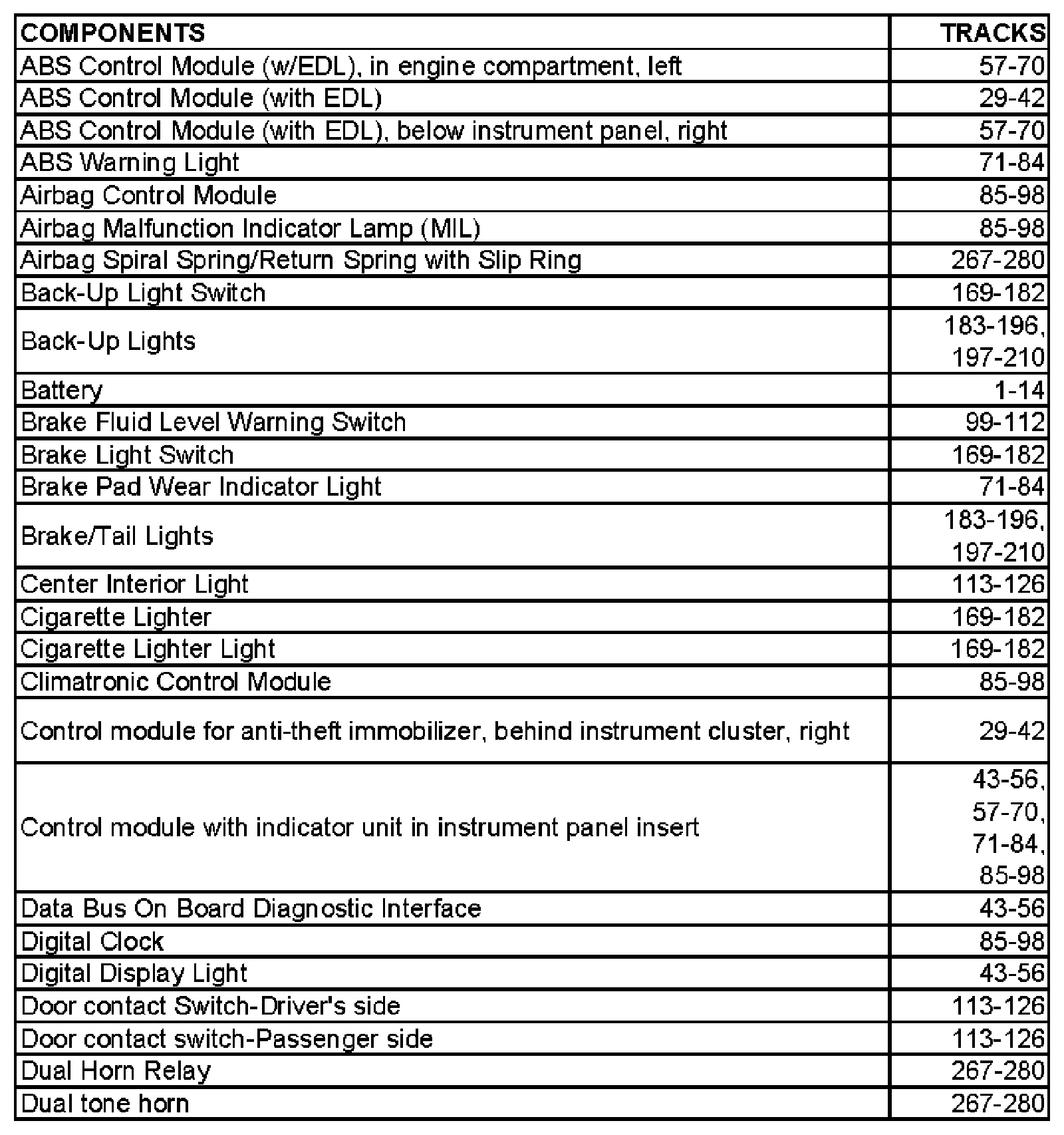

Components A - D:

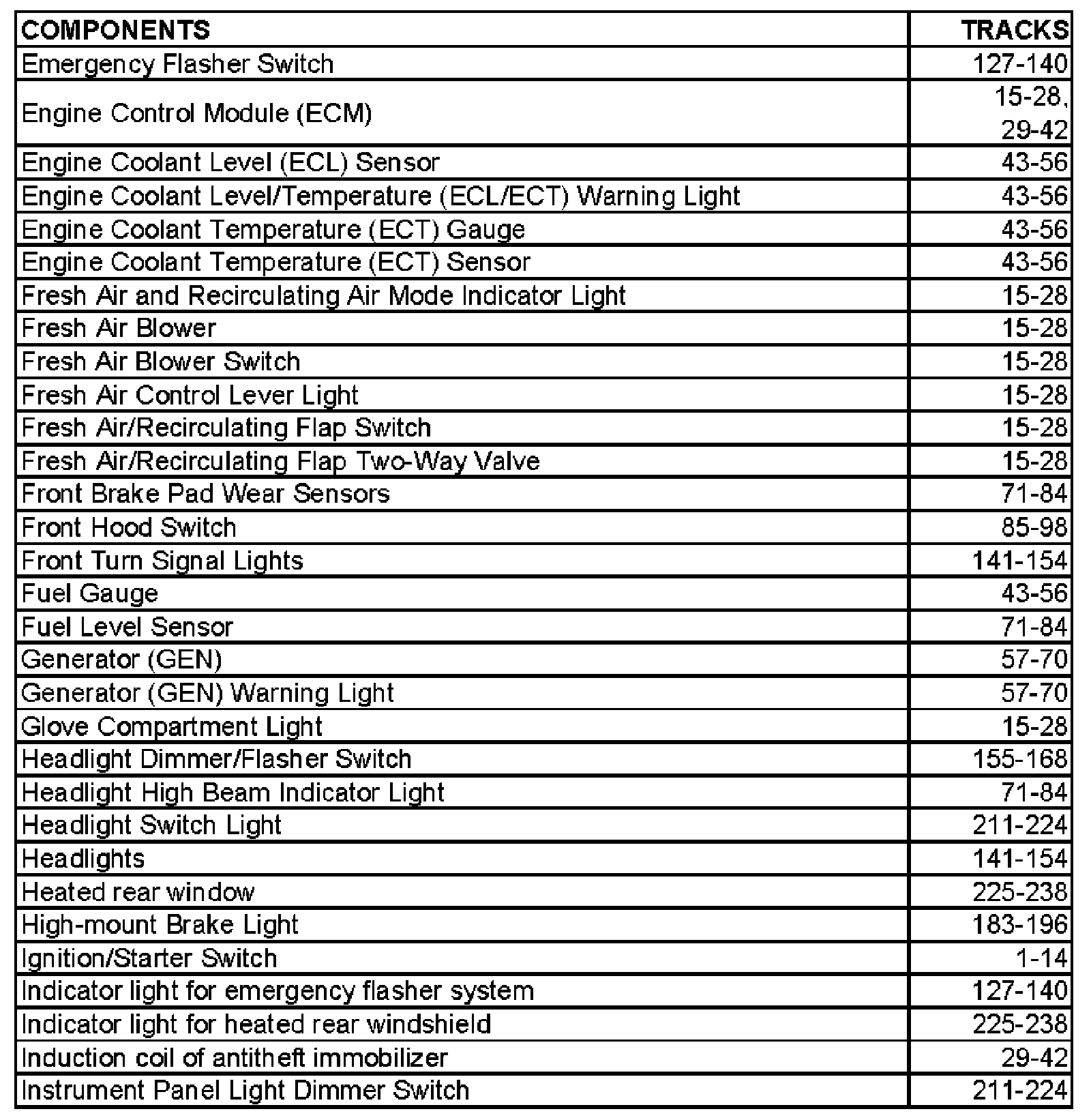

Components E - Ins:

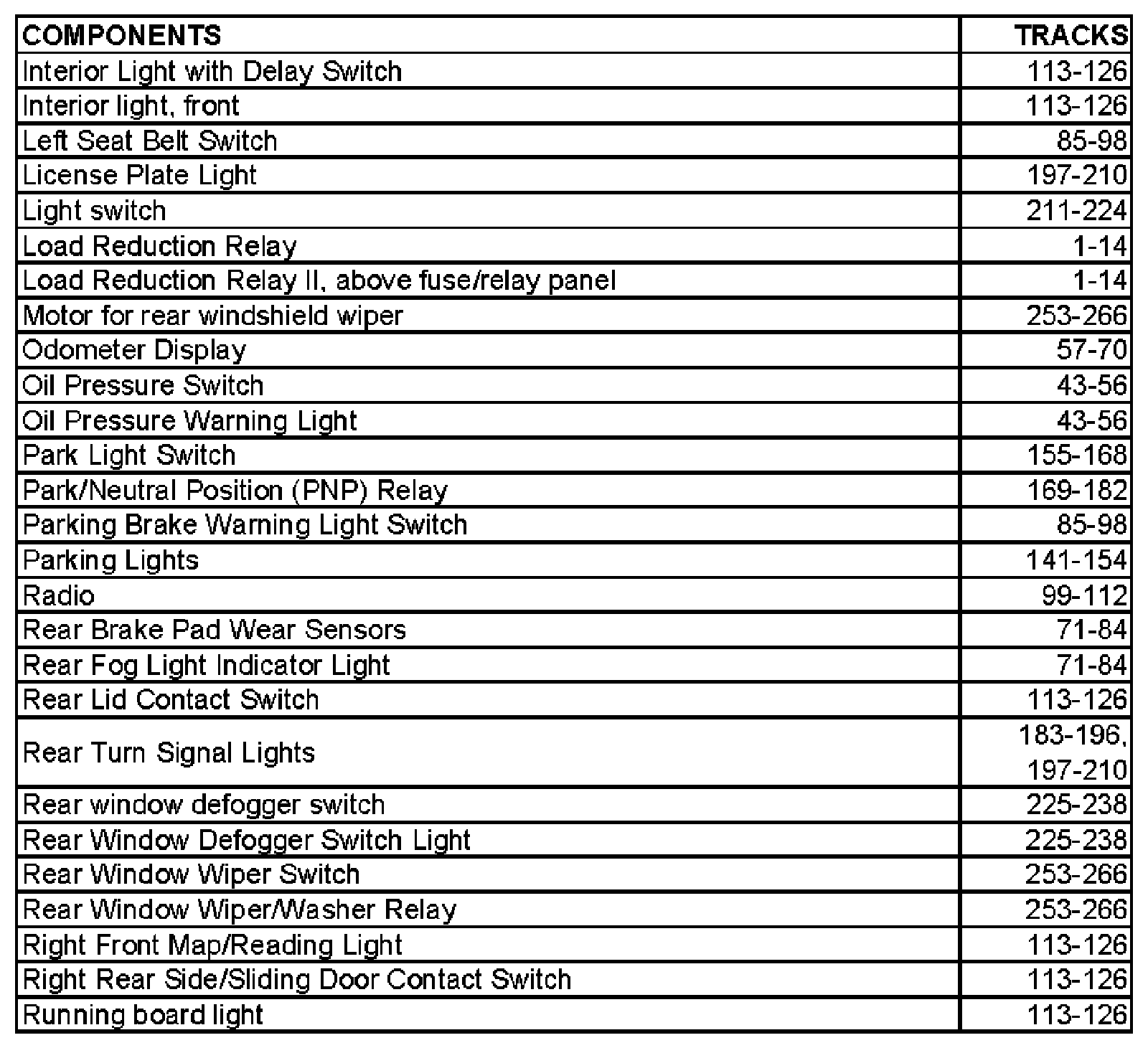

Components I - R:

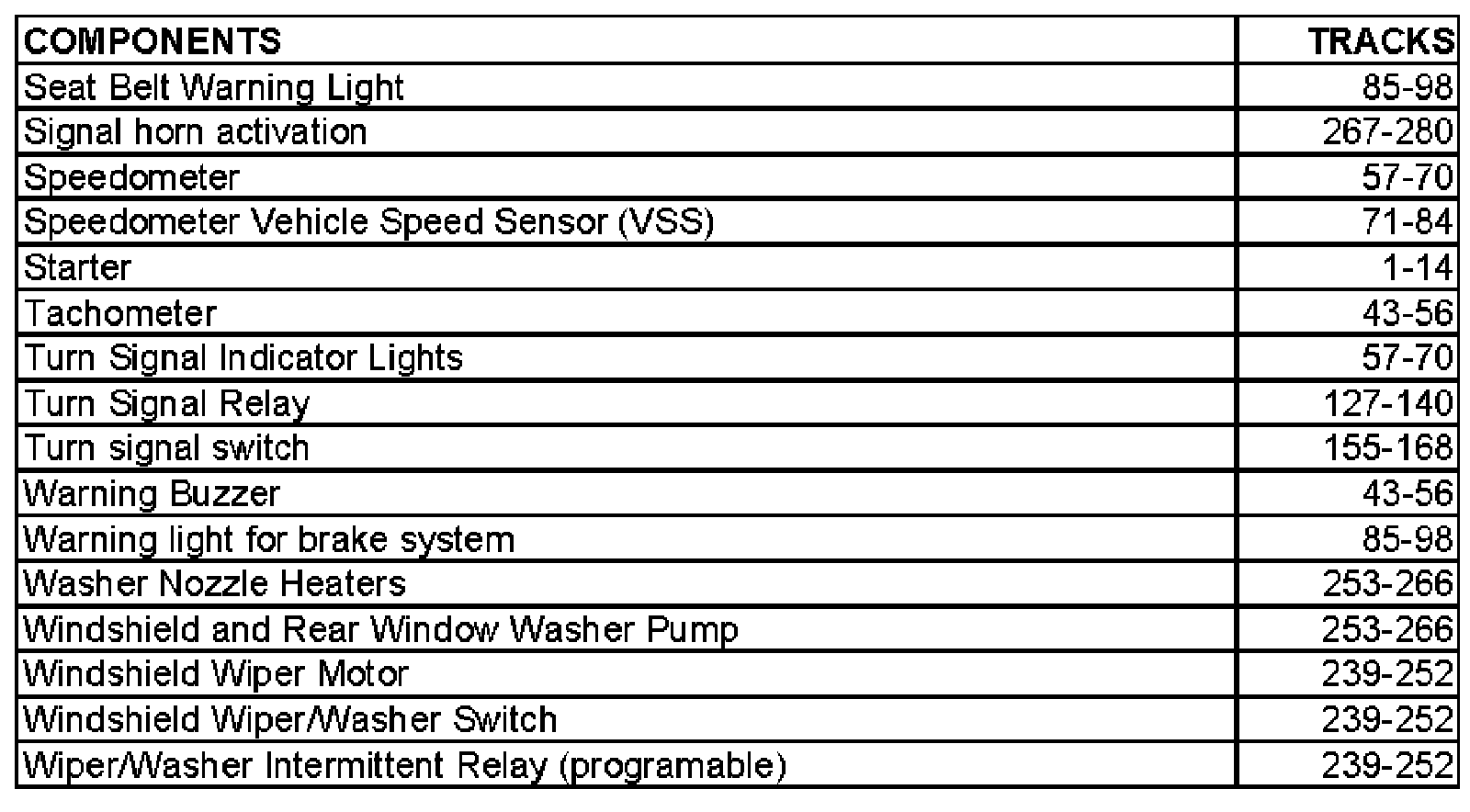

Components S - W:

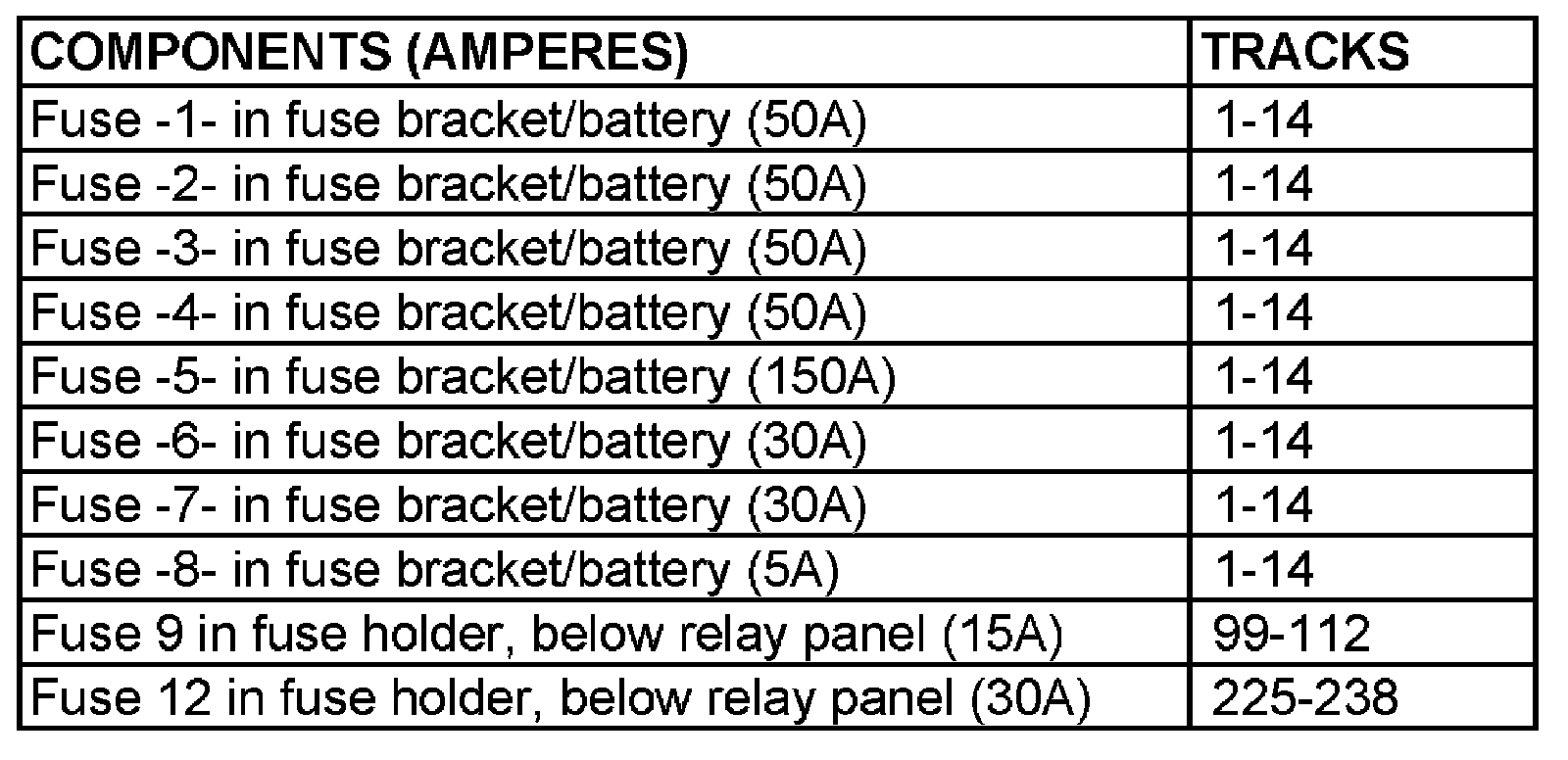

Fuses:
