Pre Bleed Brake Caliper

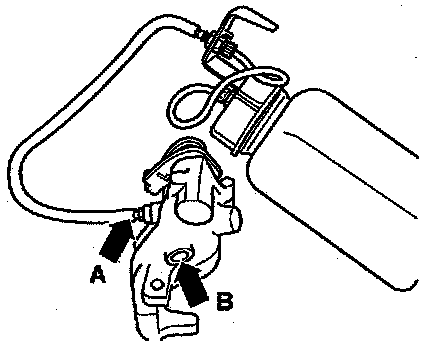

Open bleed valve (arrow A) and using a standard bleeder bottle, fill with brake fluid until bubble-free brake fluid flows from threaded brake hose connection hole (arrow B).

Close bleed valve

NOTE: When pre-bleeding, position the brake caliper as shown in the illustration.
