Terminal Identification

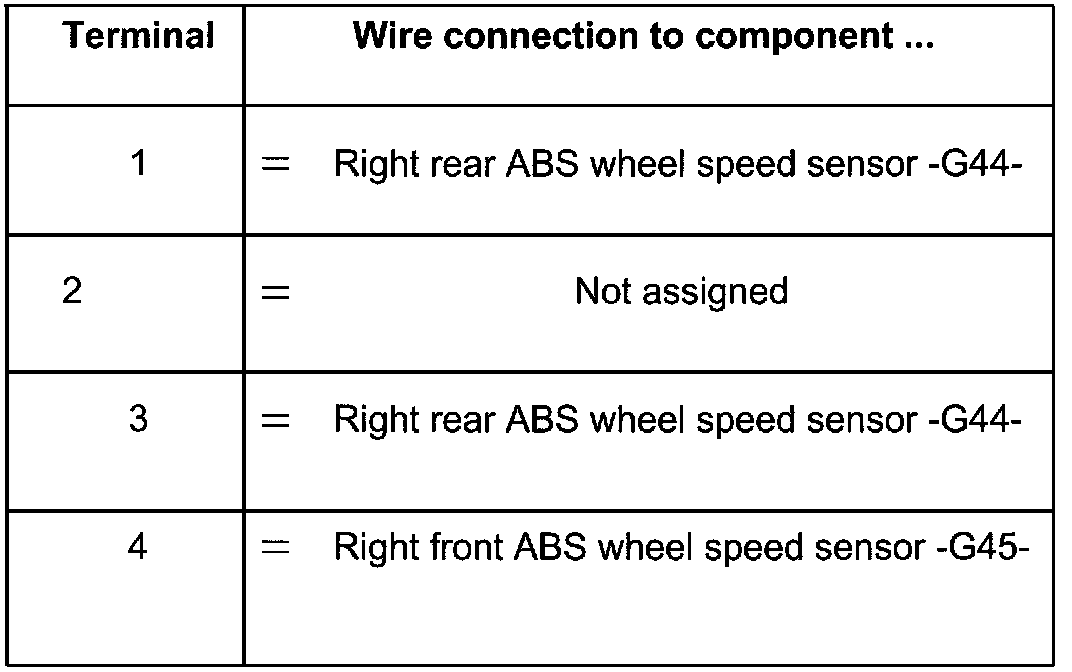

Terminal 1 - 4

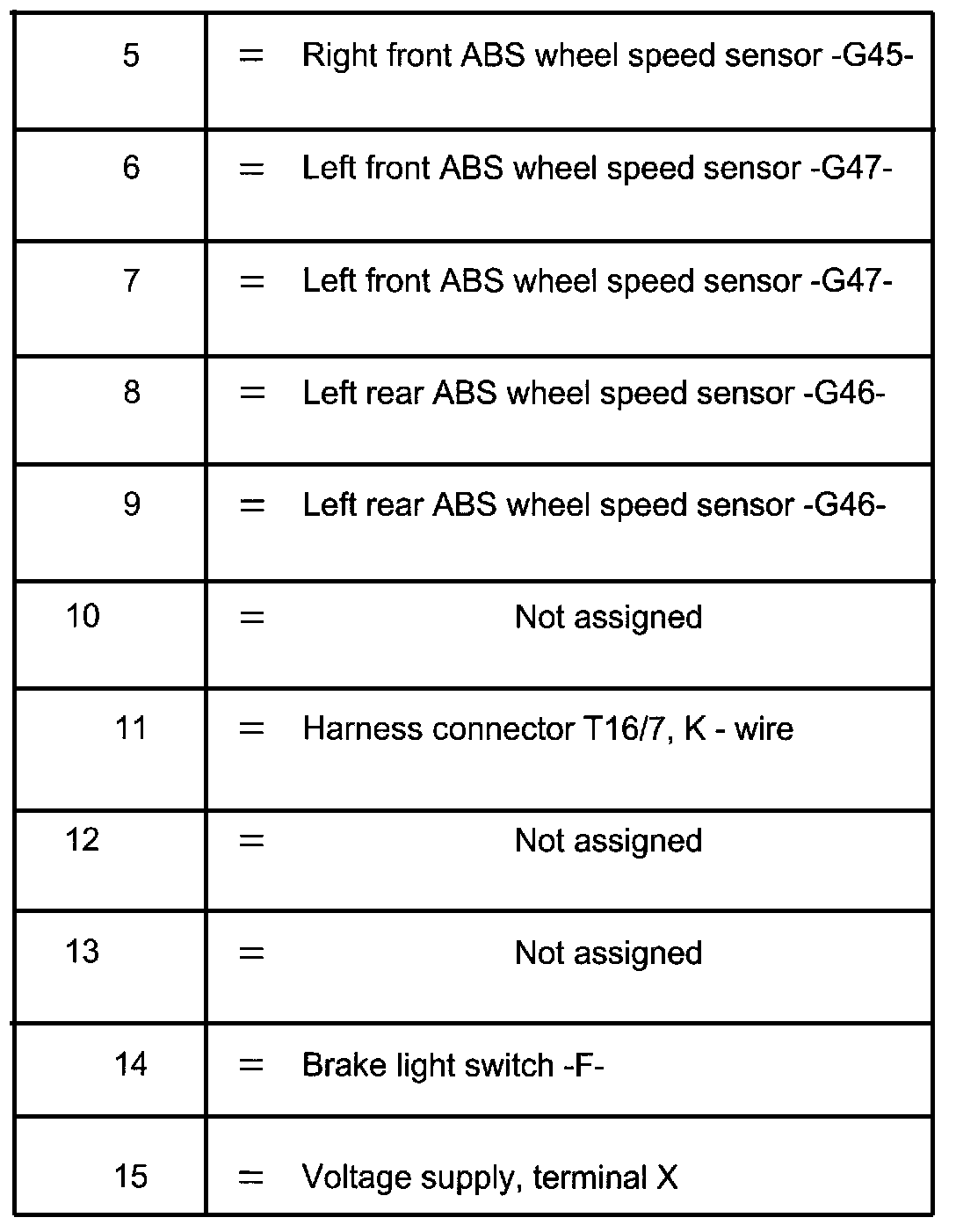

Terminal 5 - 15

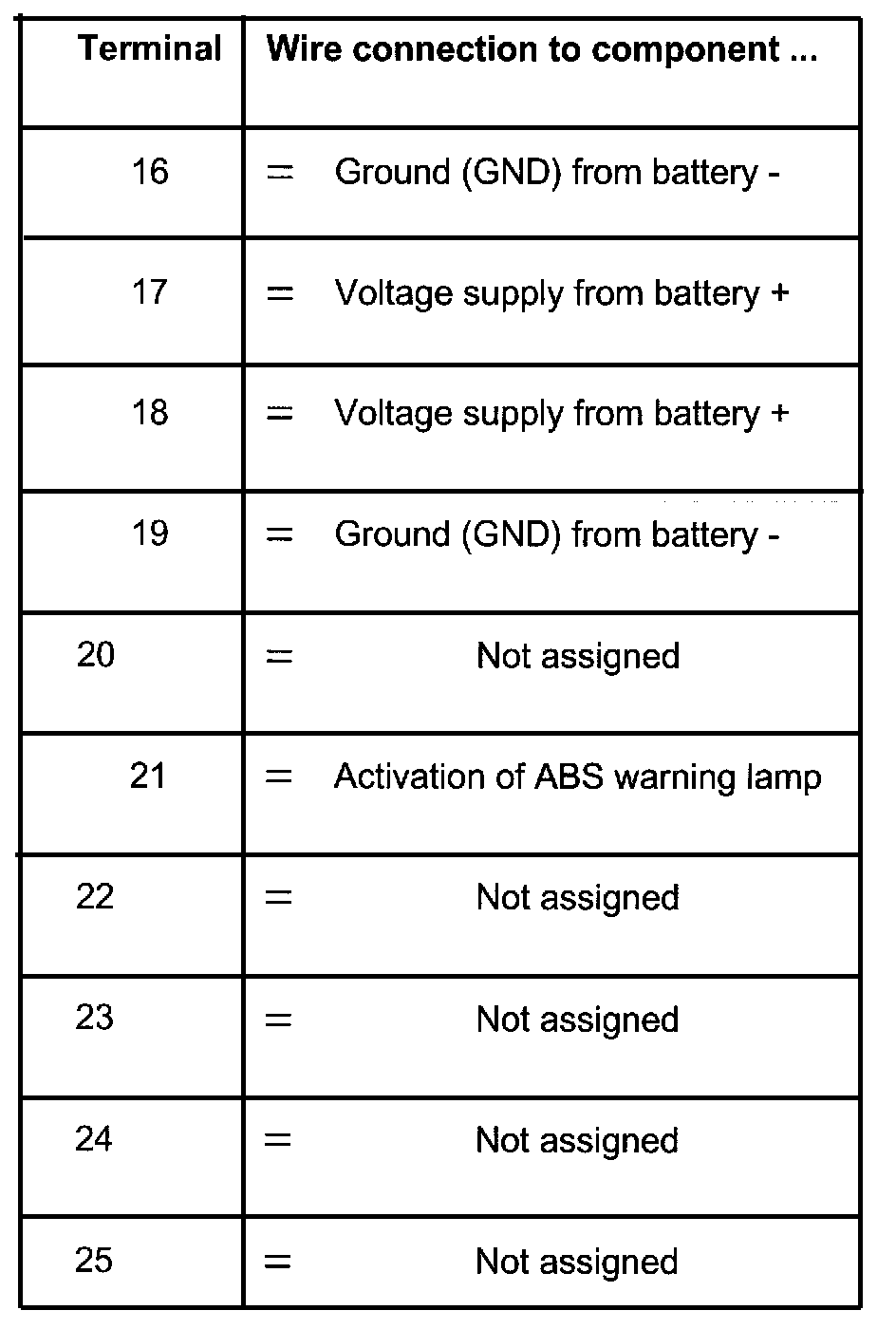

Terminal 16 - 25

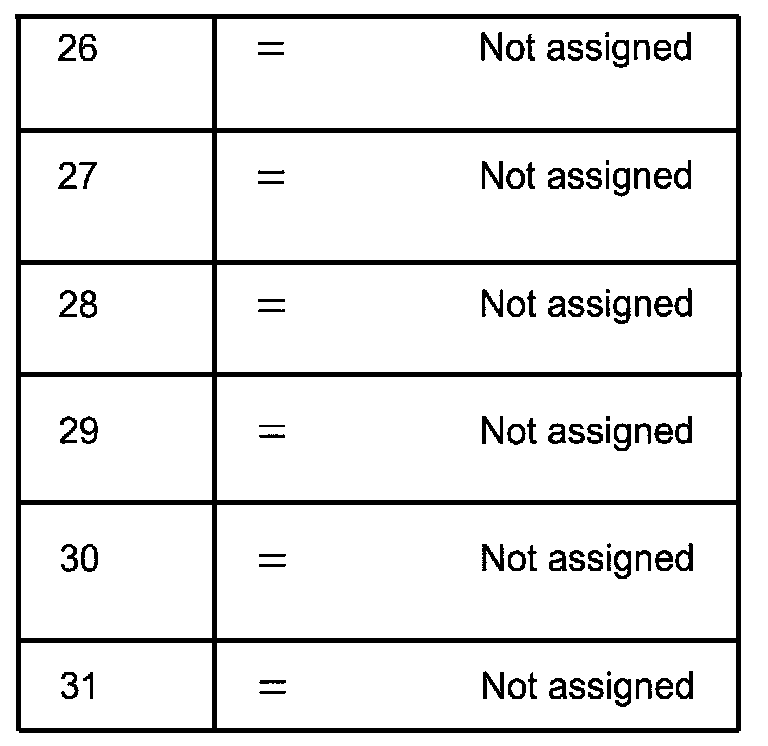

Terminal 26 - 31

Overview of test steps

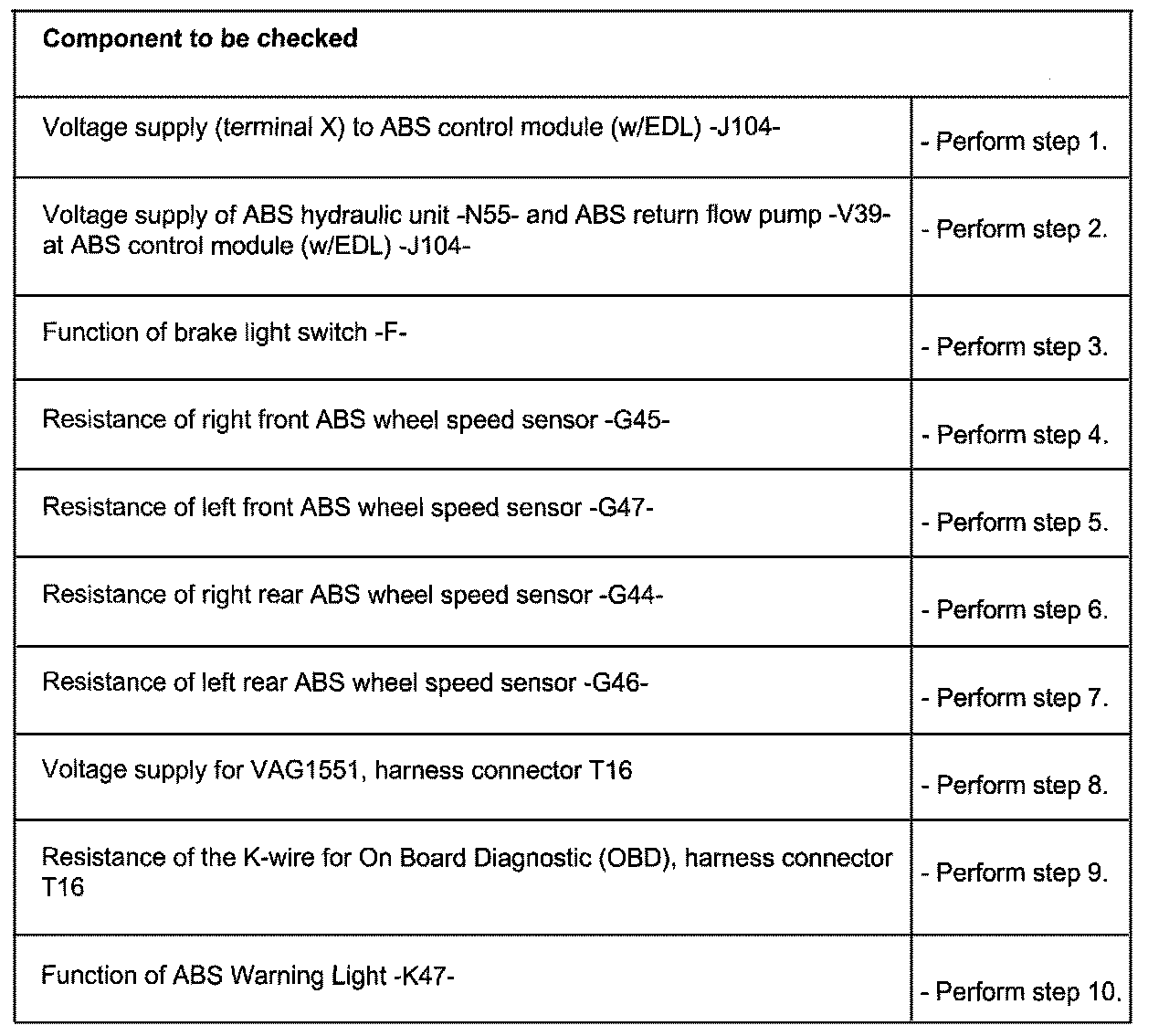

Steps 1 - 10

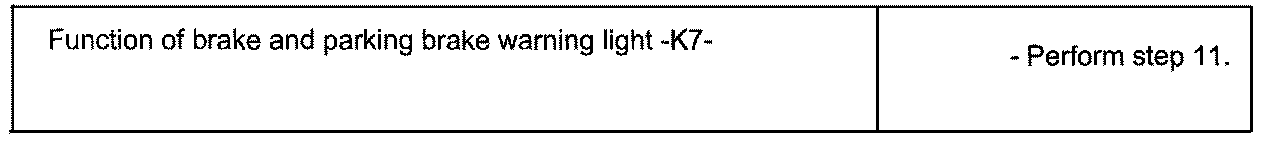

Step 11
