ABS Light: Adjustments

Brake light switch, adjusting

Note: Brake light switch must be removed for adjustment.

^ Remove cover, driver's side.
^ Disconnect connector from brake light switch.

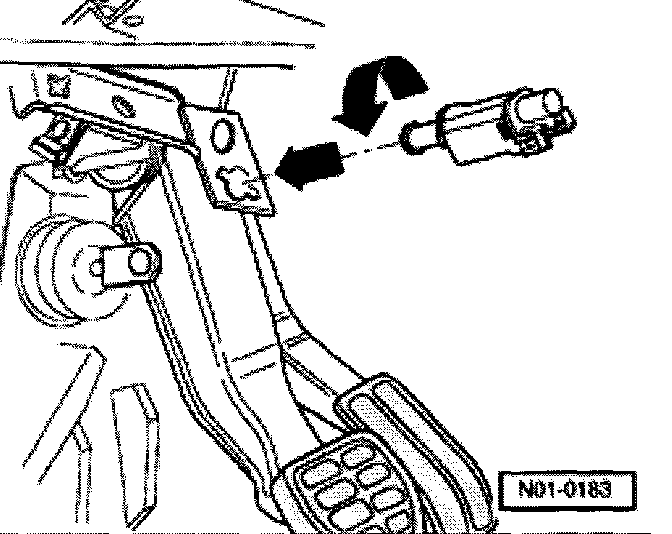

^ Remove brake light switch by rotating 90° toward left.
^ Completely remove plunger of brake light switch.
^ Press down brake pedal as far as possible by hand.
^ Guide brake light switch through assembly hole and re-install by rotating 90° toward right.
^ Release brake pedal.

After adjusting brake light switch, check whether brake pedal is in end position (released position).

^ Connect connector for brake light switch.
^ Operate brake pedal.
- brake lights light up.
^ Remove foot from brake pedal.
- brake lights must not light up.
^ Install cover, driver's side.
